Timber Retreat |Northwest ADU with Bedroom and Office

About This Project

  • Custom Tiny Home
  • Two Story
  • 30'-0" x 23'-0"
  • 900 sf Living
  • Height: 23'-9"
  • 1 Bedroom
  • 1 Full Bath
  • No Garage
  • LOffice

Plan Examples

Description

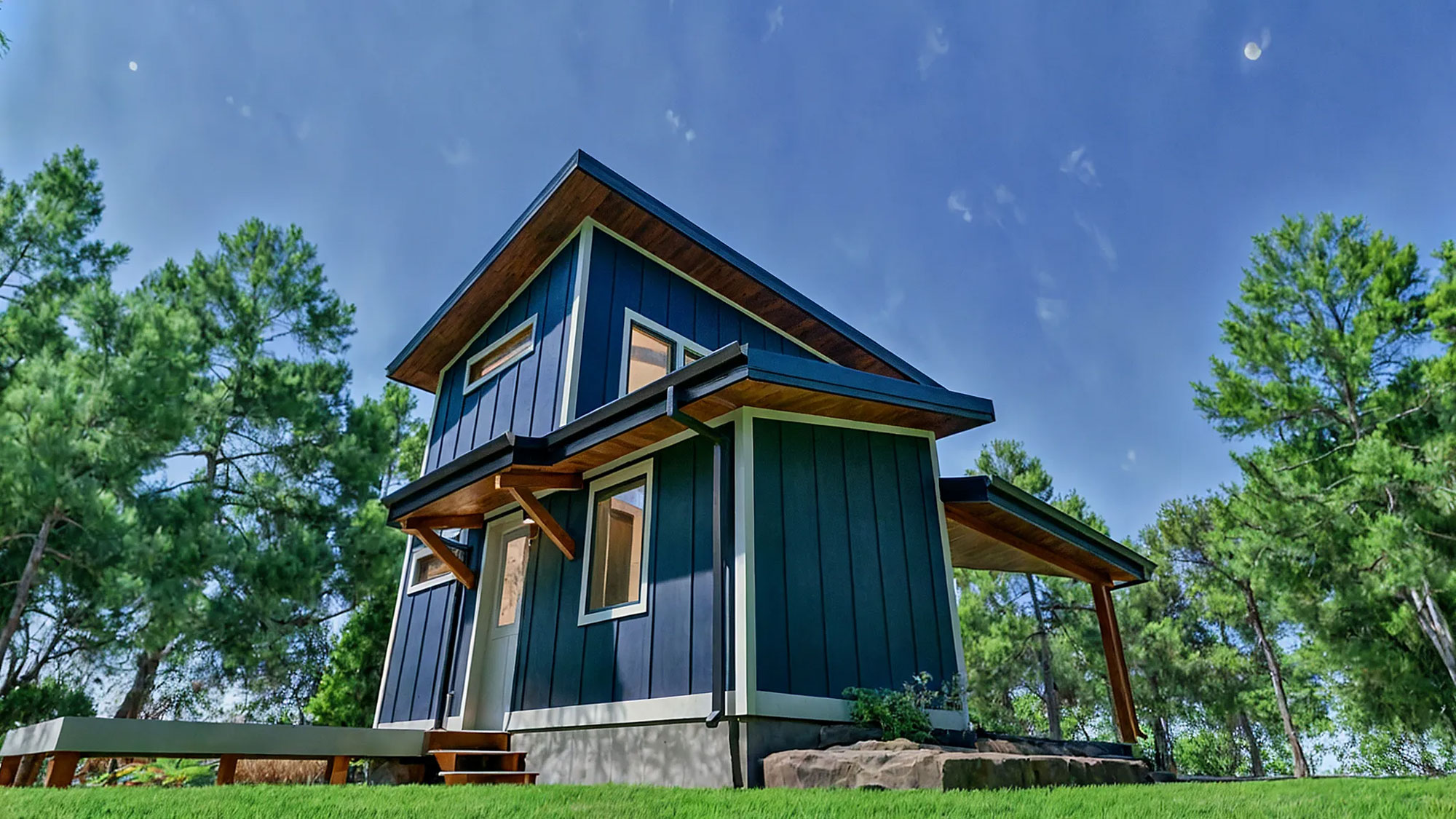

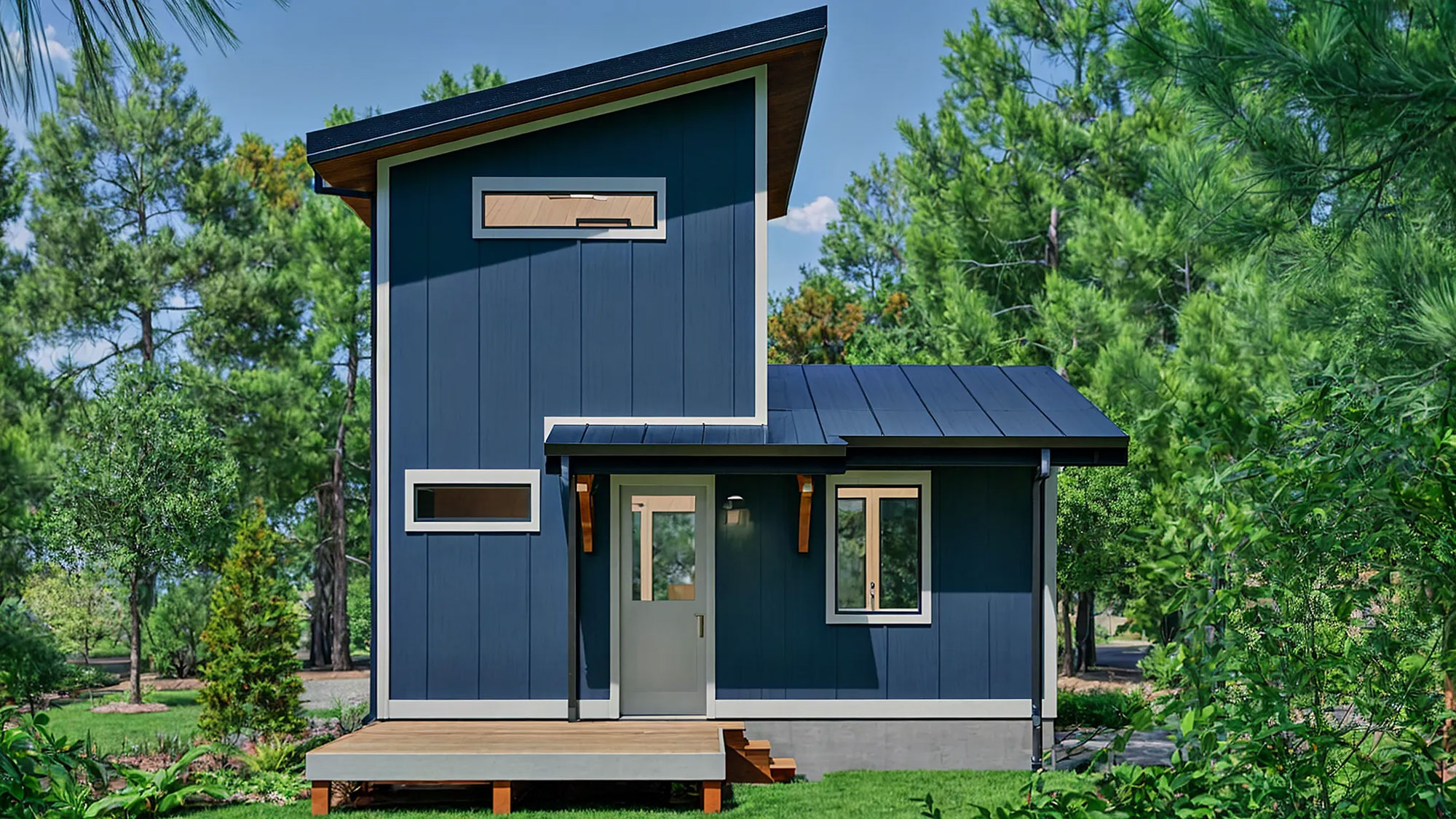

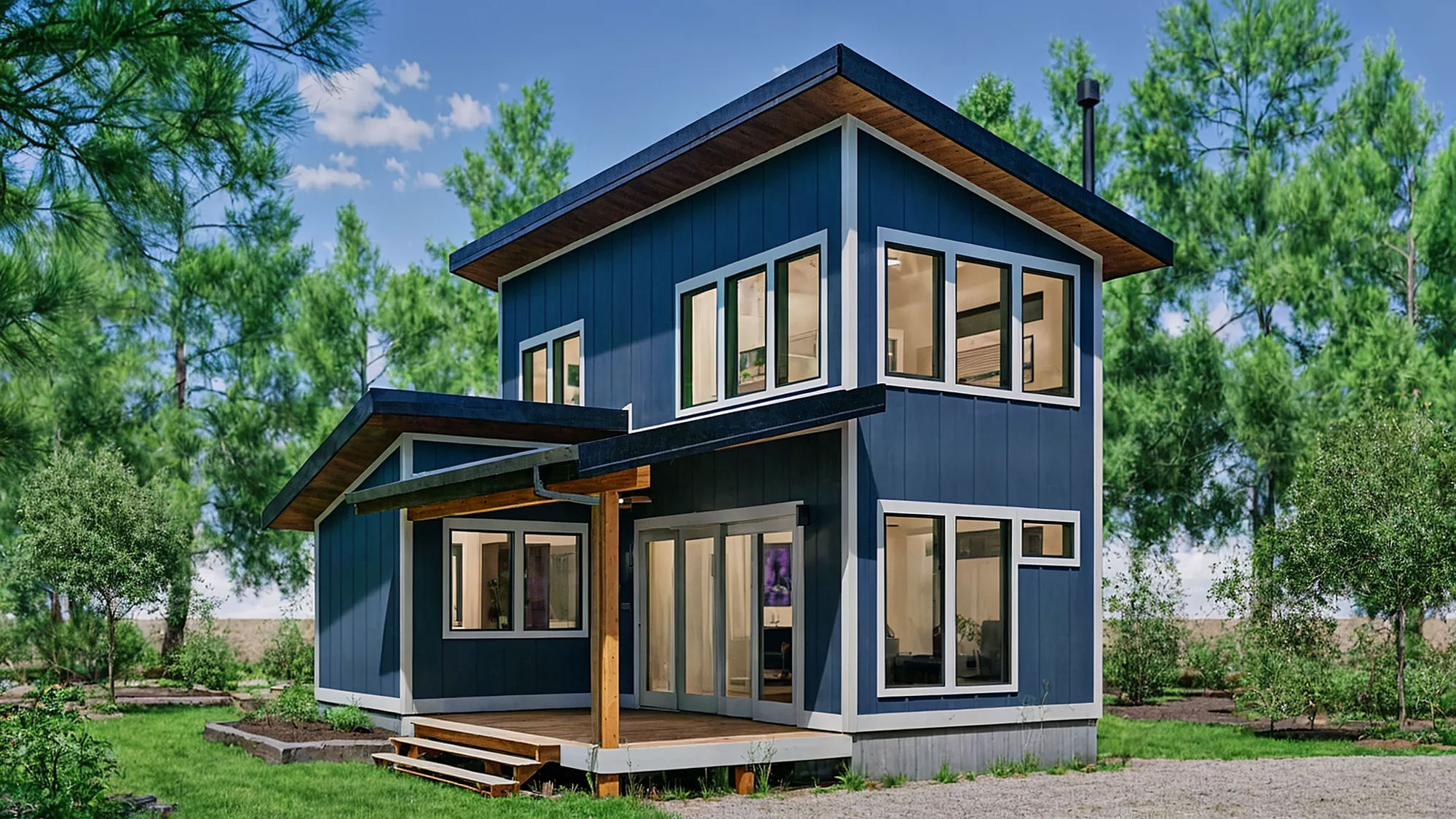

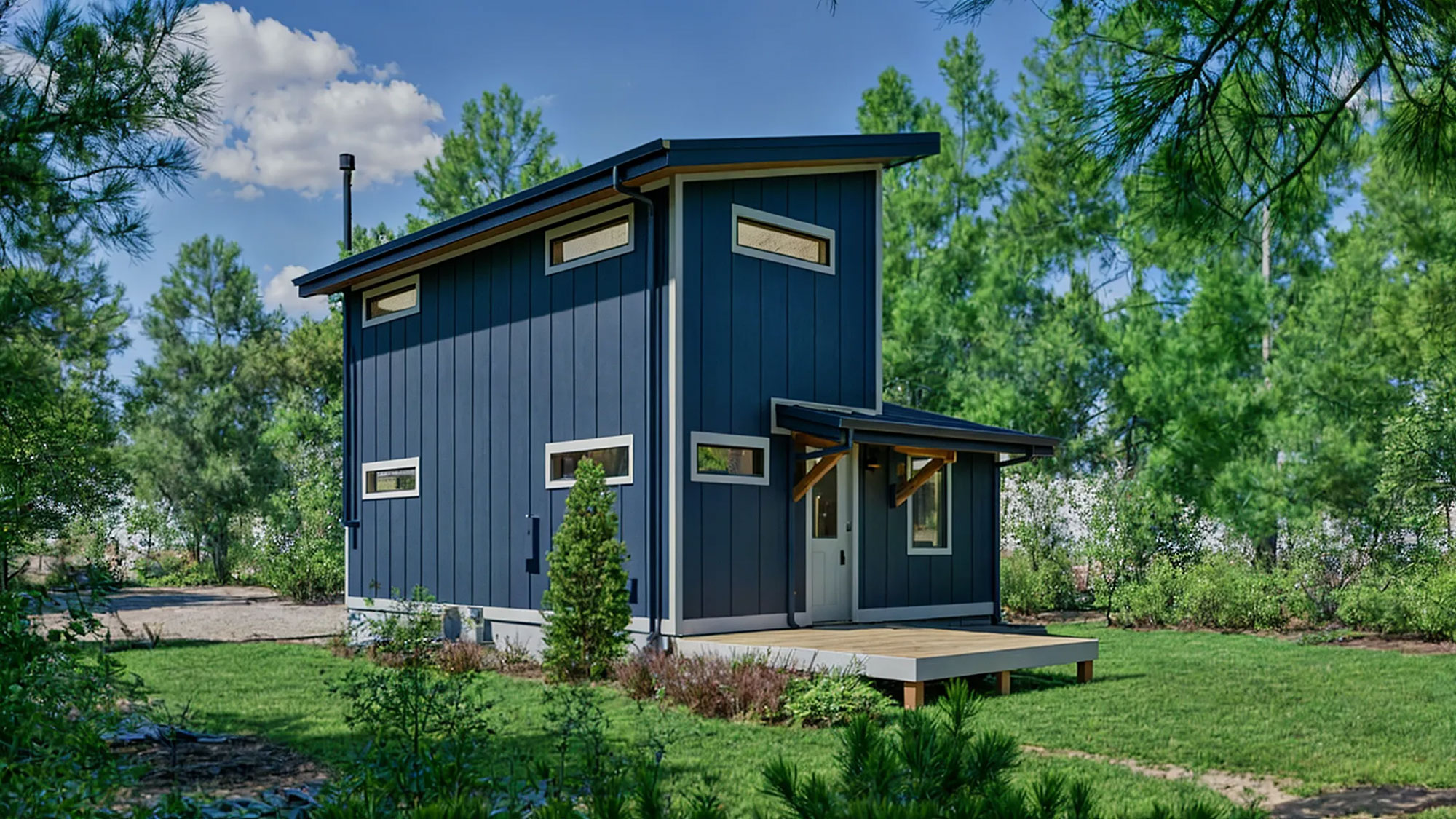

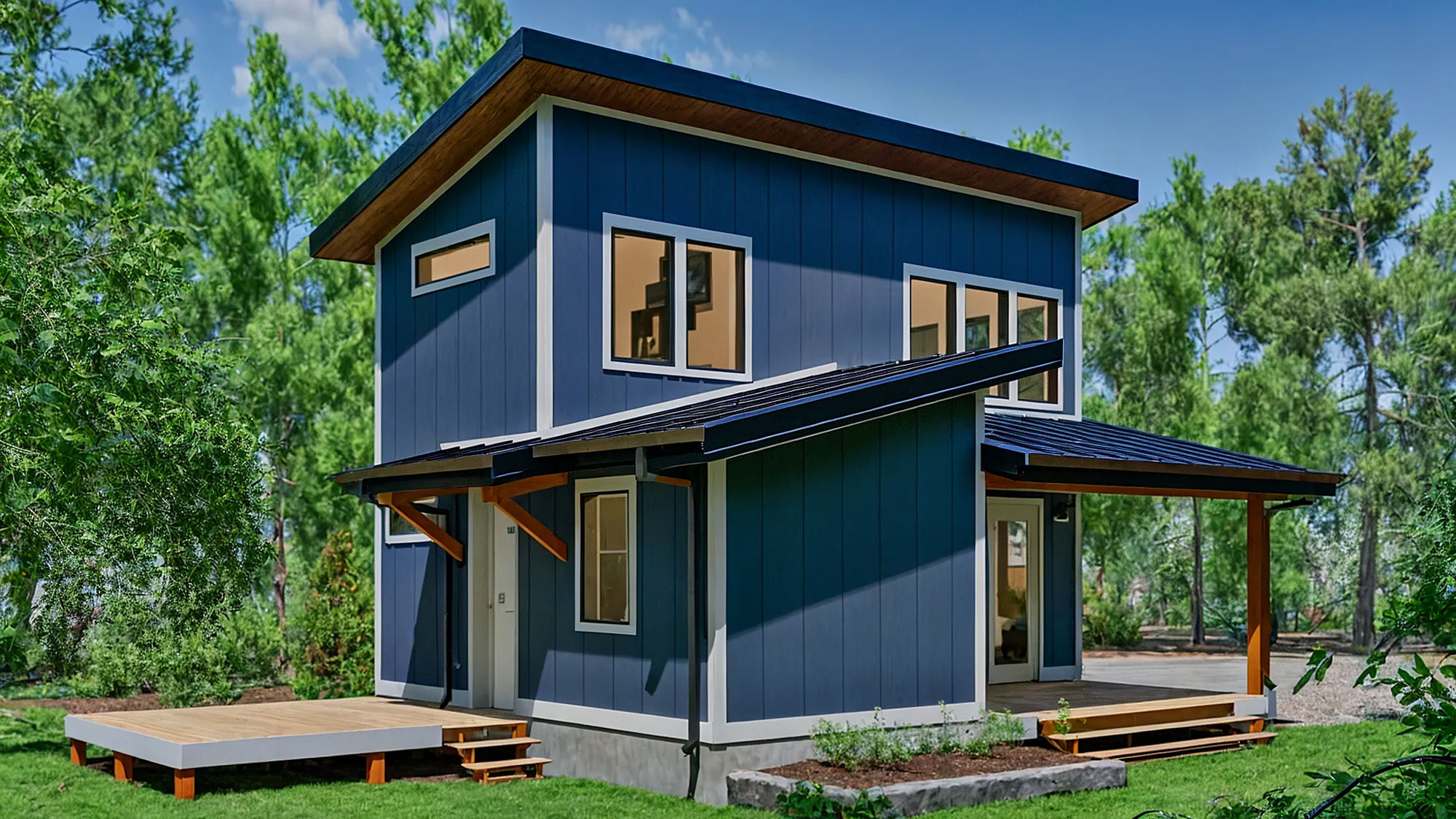

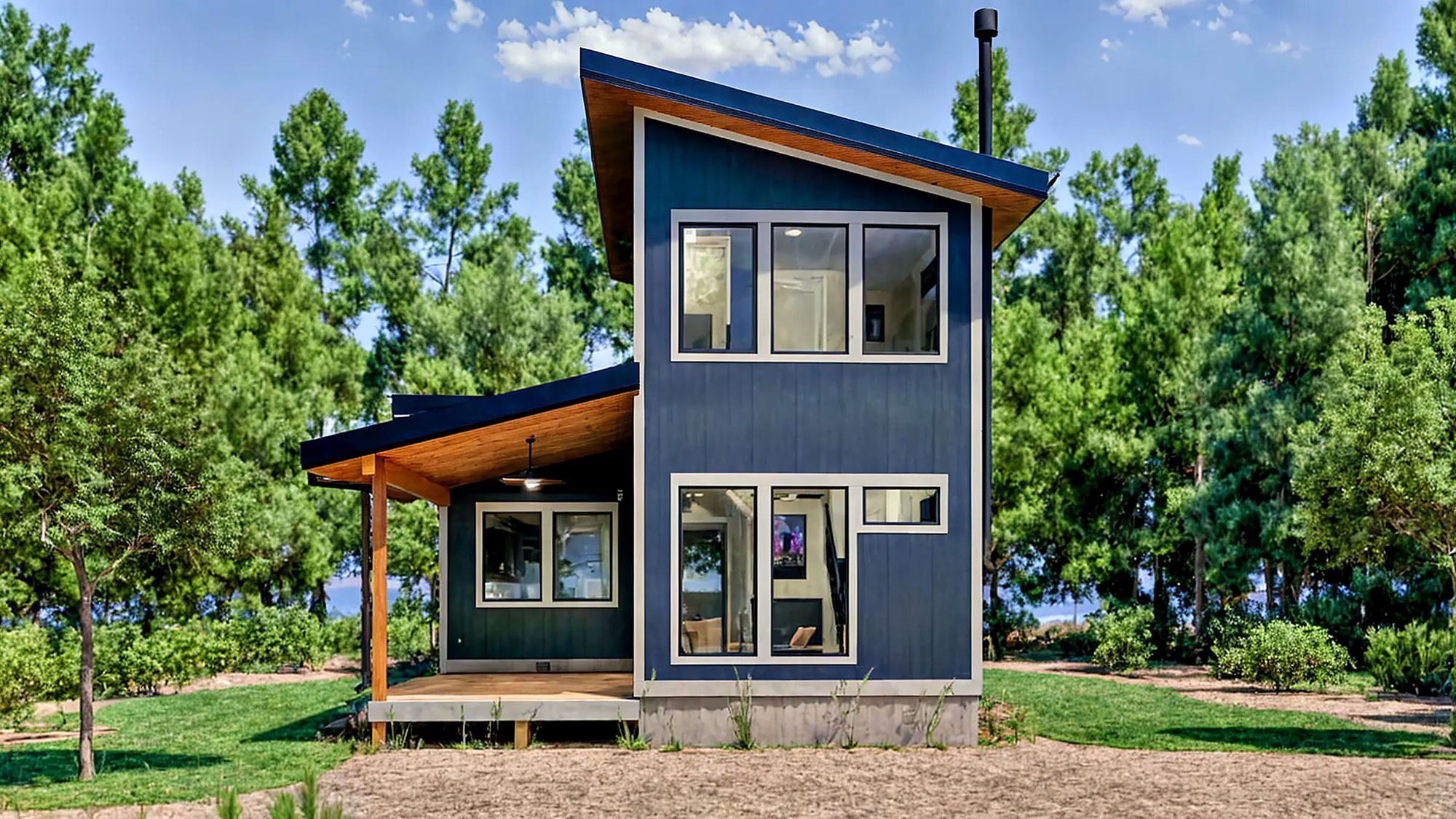

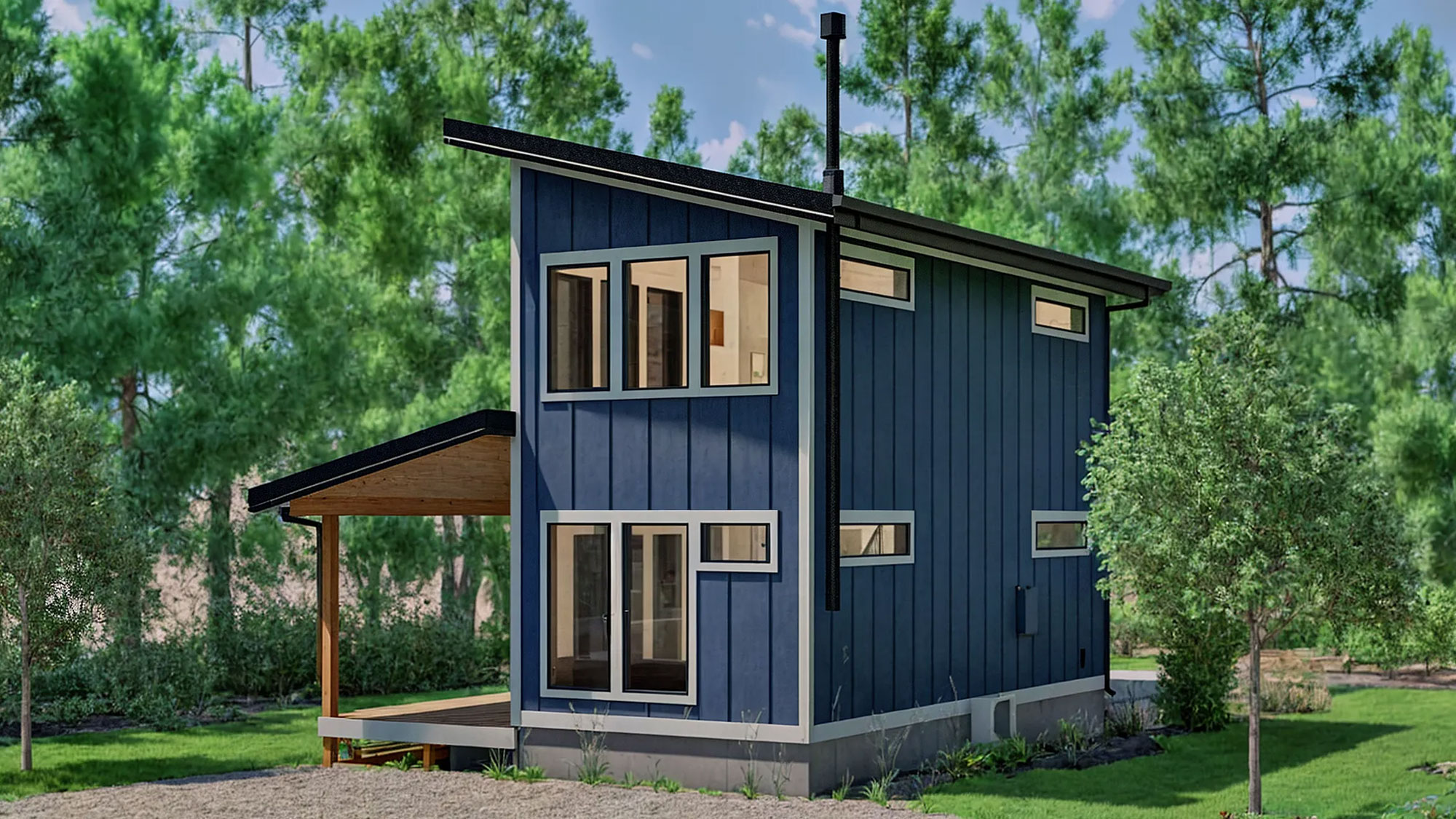

This Northwest ADU with Bedroom and Office, is 2-story accessory dwelling unit / Tiny Home, where practicality and comfort harmonize in a cozy 900 square feet of well-designed space.

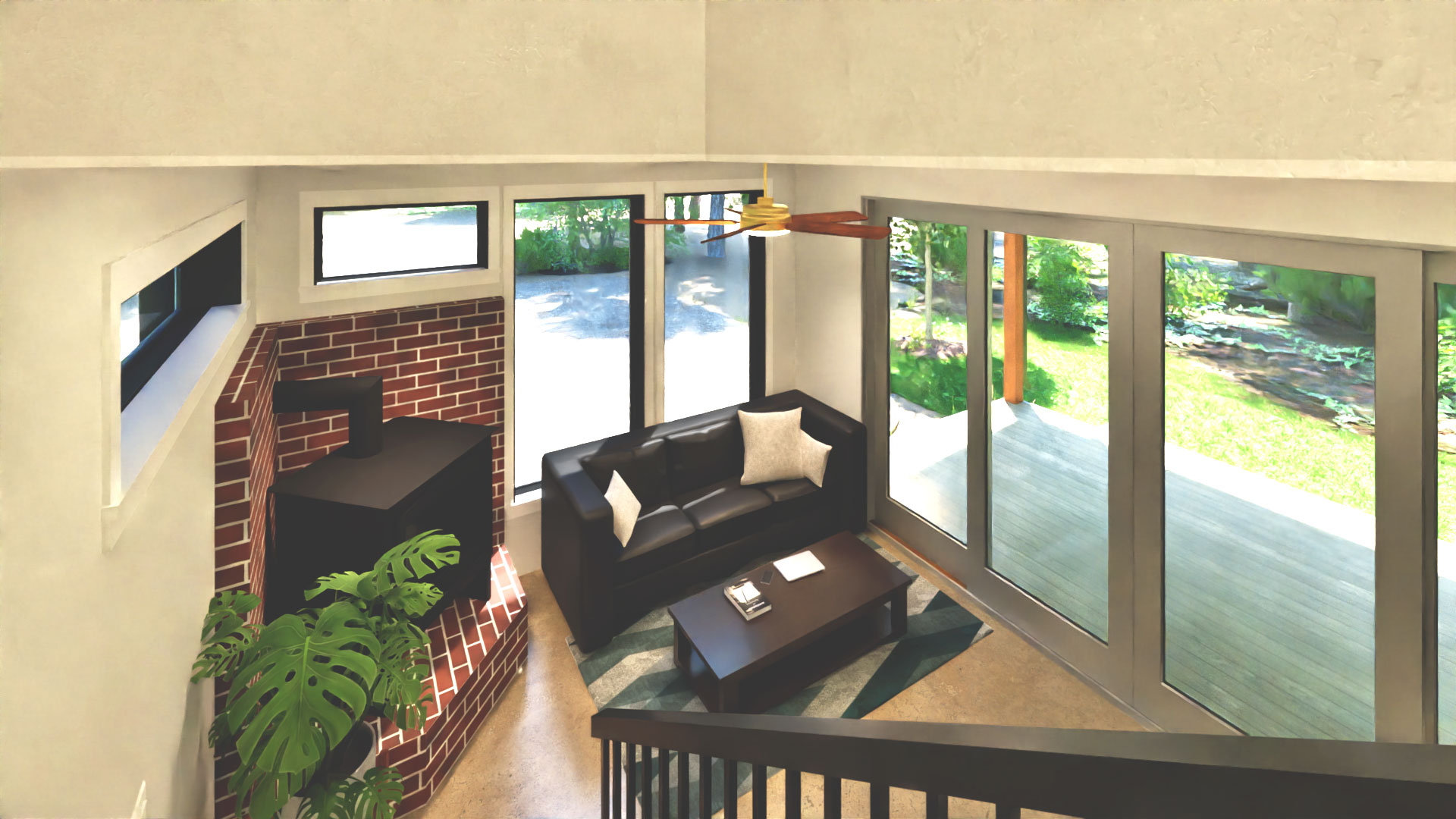

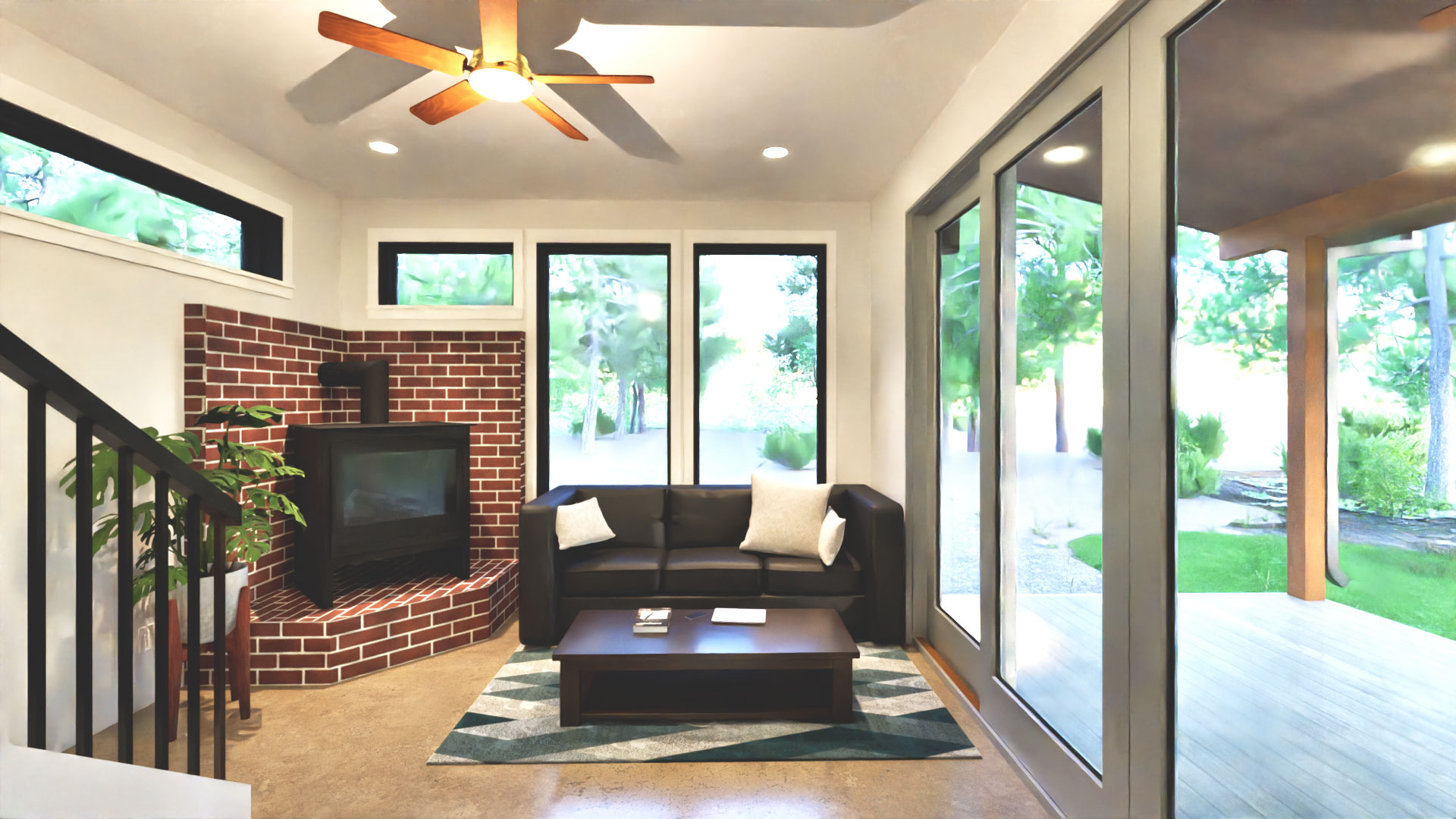

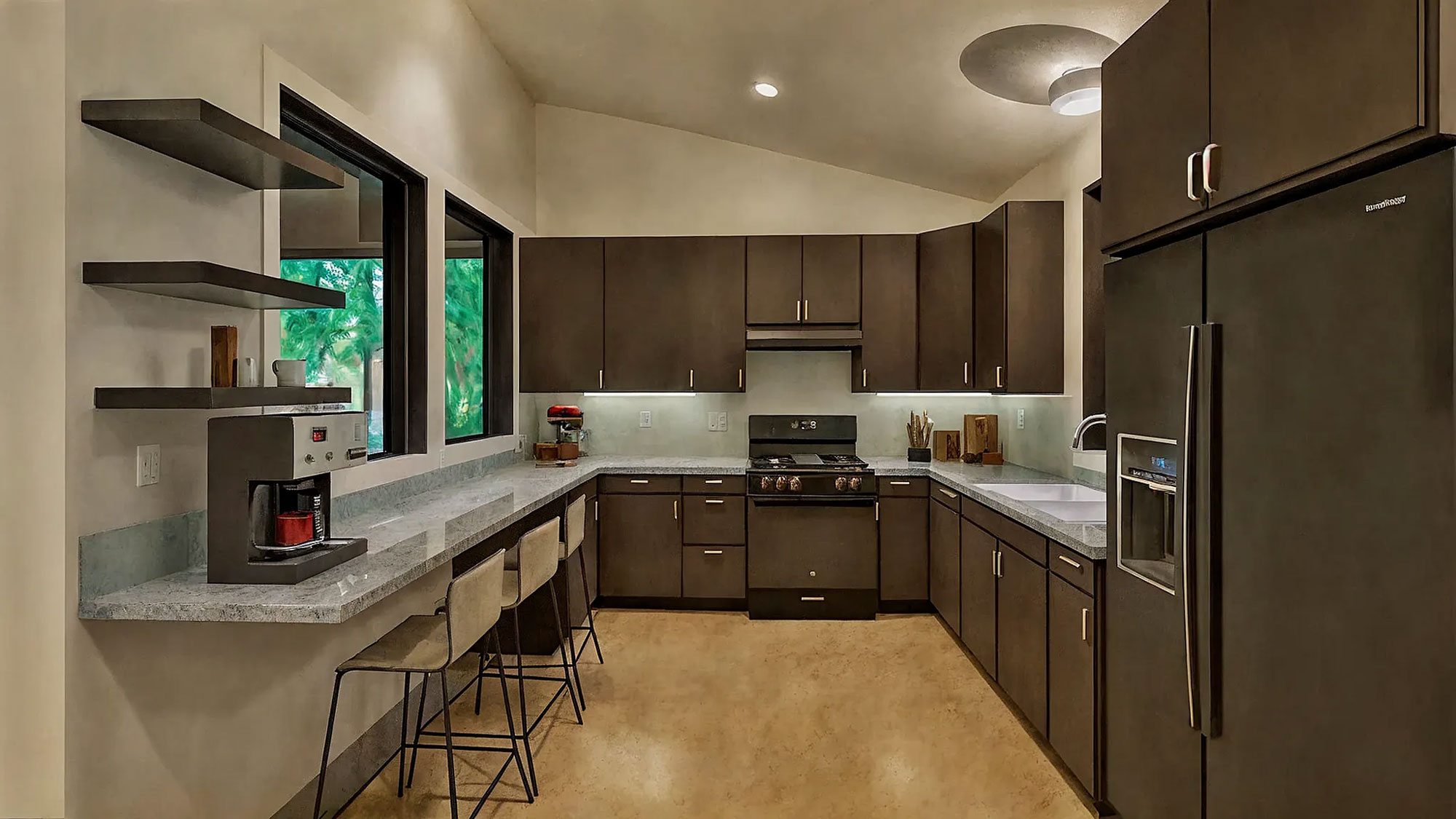

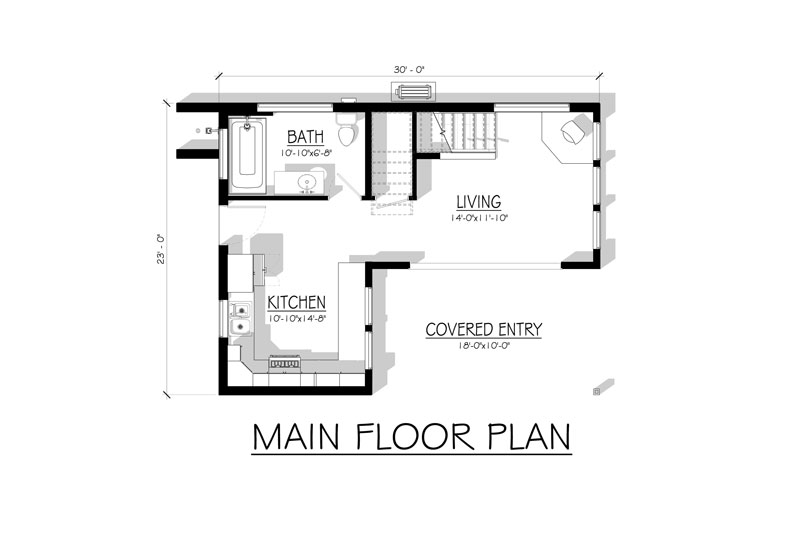

Upon entry, you’re greeted by an inviting ground floor layout. The kitchen, boasting modern appliances and ample storage, occupies one corner, seamlessly blending into the adjacent living area, ideal for relaxation or socializing with guests.

At the rear of the ground floor, you’ll find a convenient bathroom, complete with a shower, toilet and vanity sink.

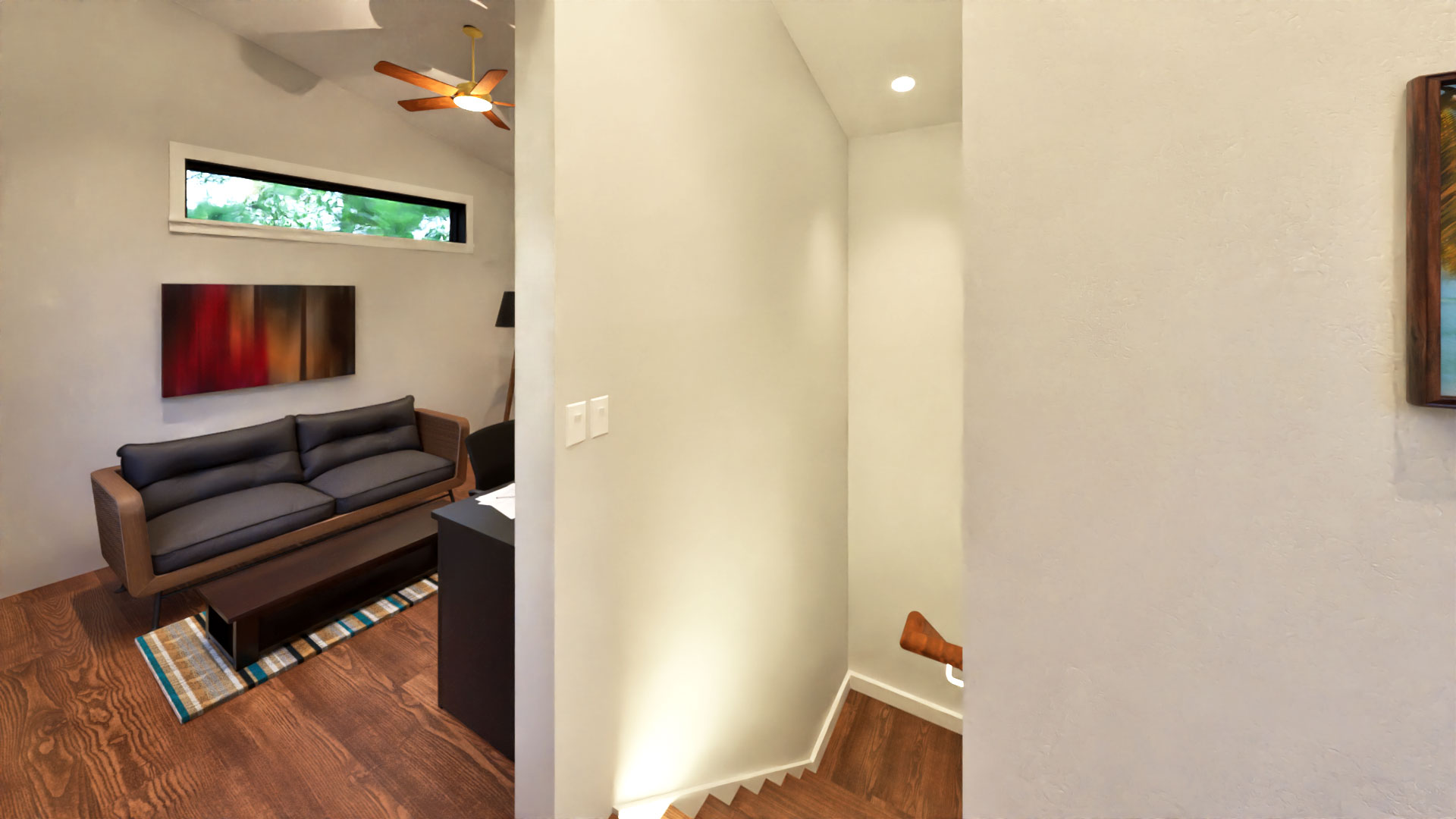

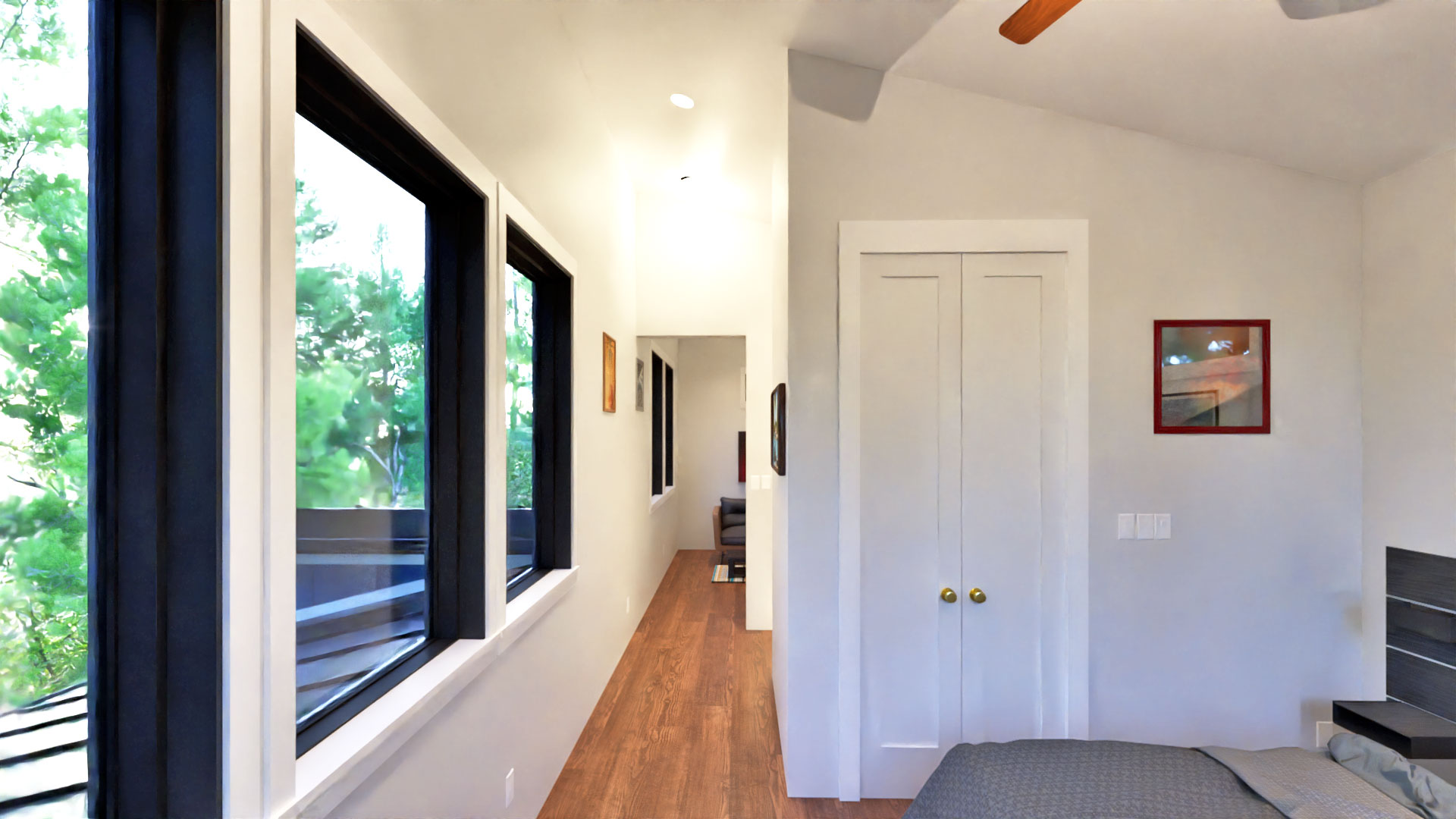

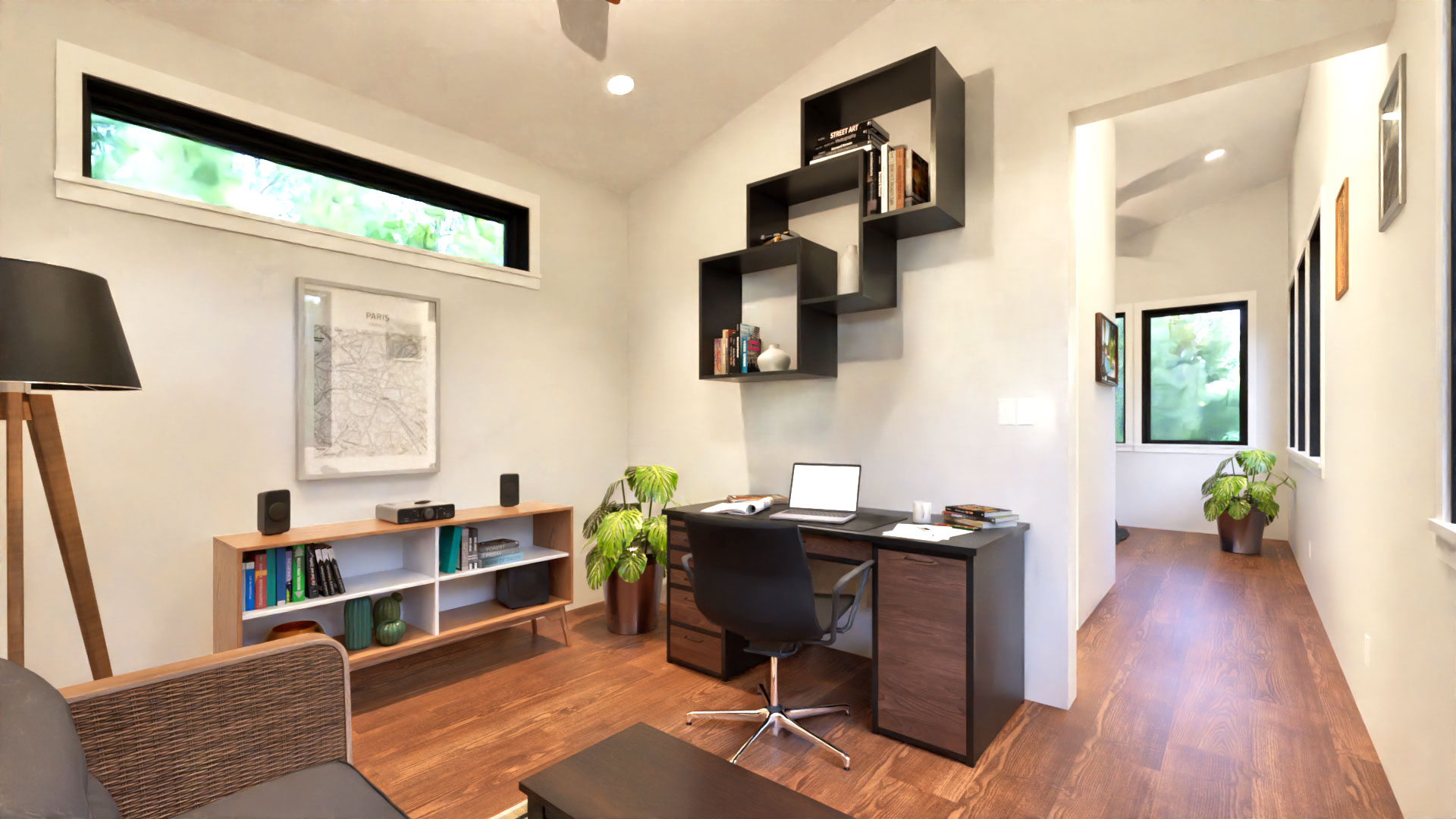

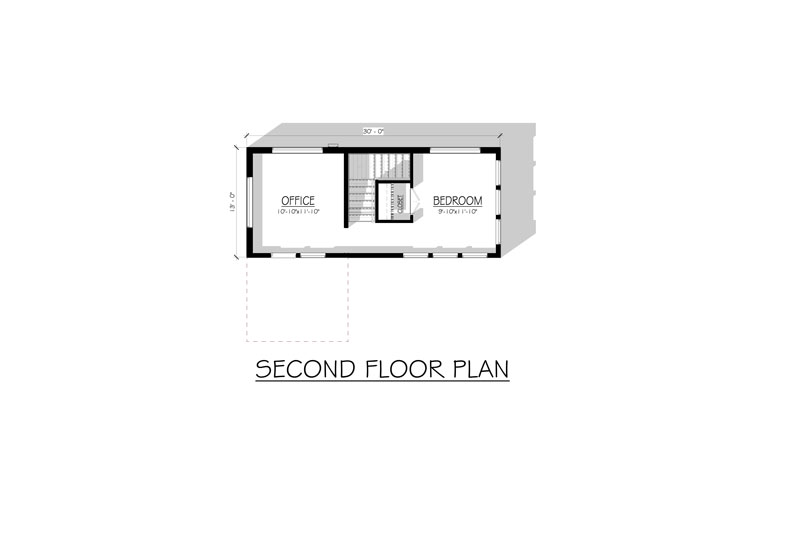

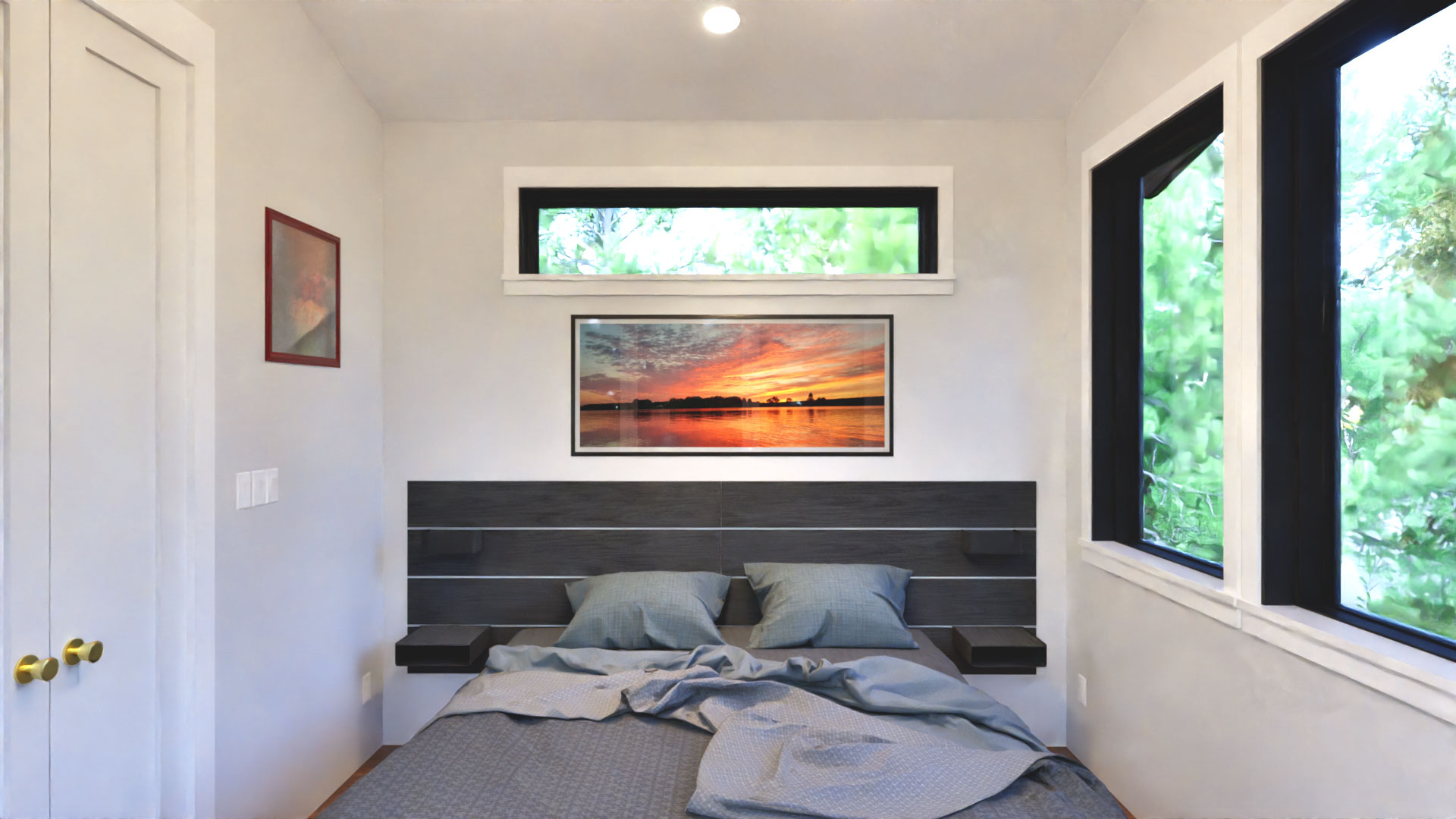

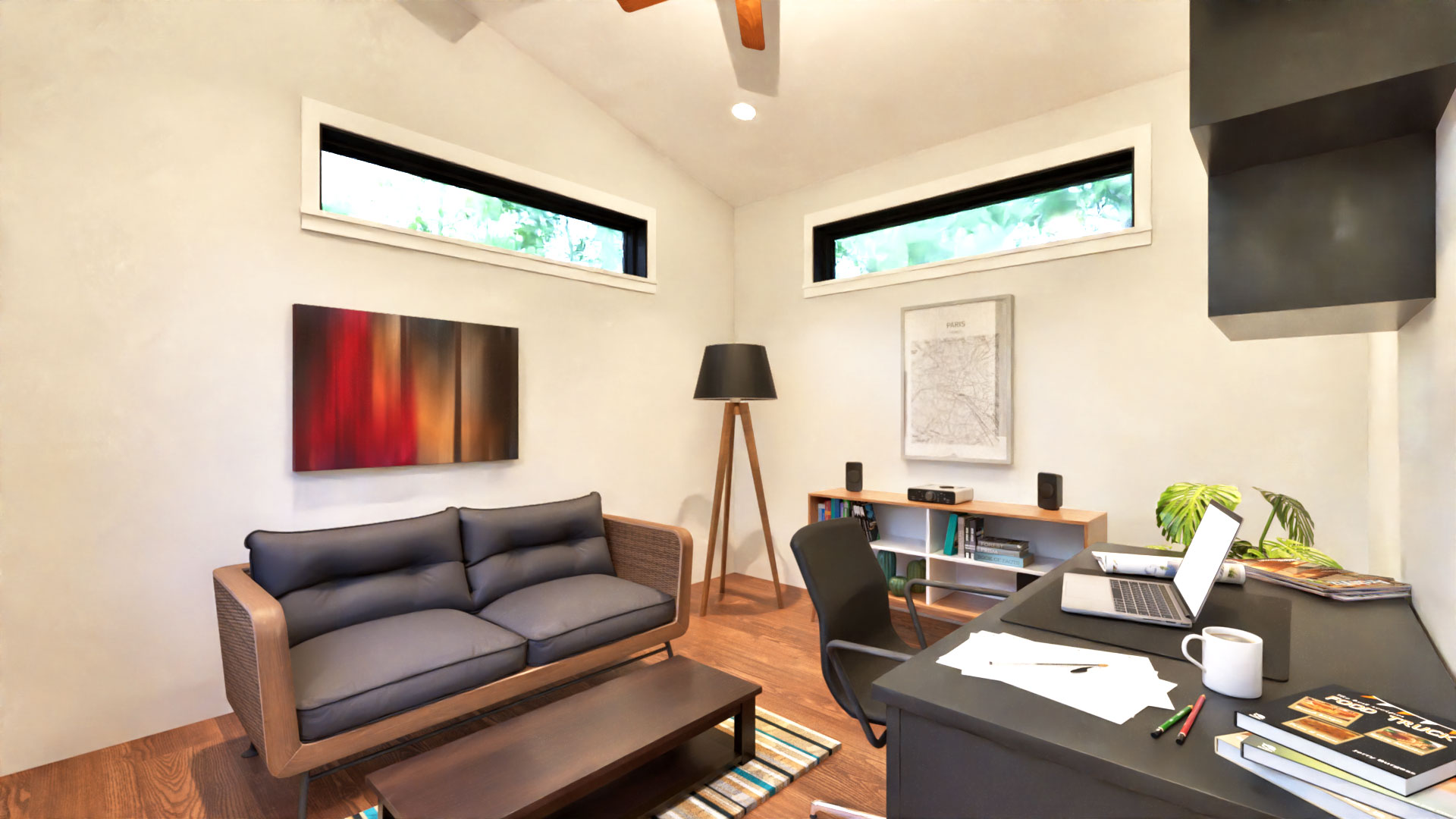

Ascend the staircase to the upper level, where tranquility awaits. The bedroom offers a peaceful atmosphere, with space for a comfortable bed and storage solutions to keep your belongings organized. Adjacent to the bedroom, a dedicated office space provides a productive environment for focused work. With abundant natural light and enough room for a desk and seating area, this space offers the perfect setting for tackling tasks from the comfort of home.

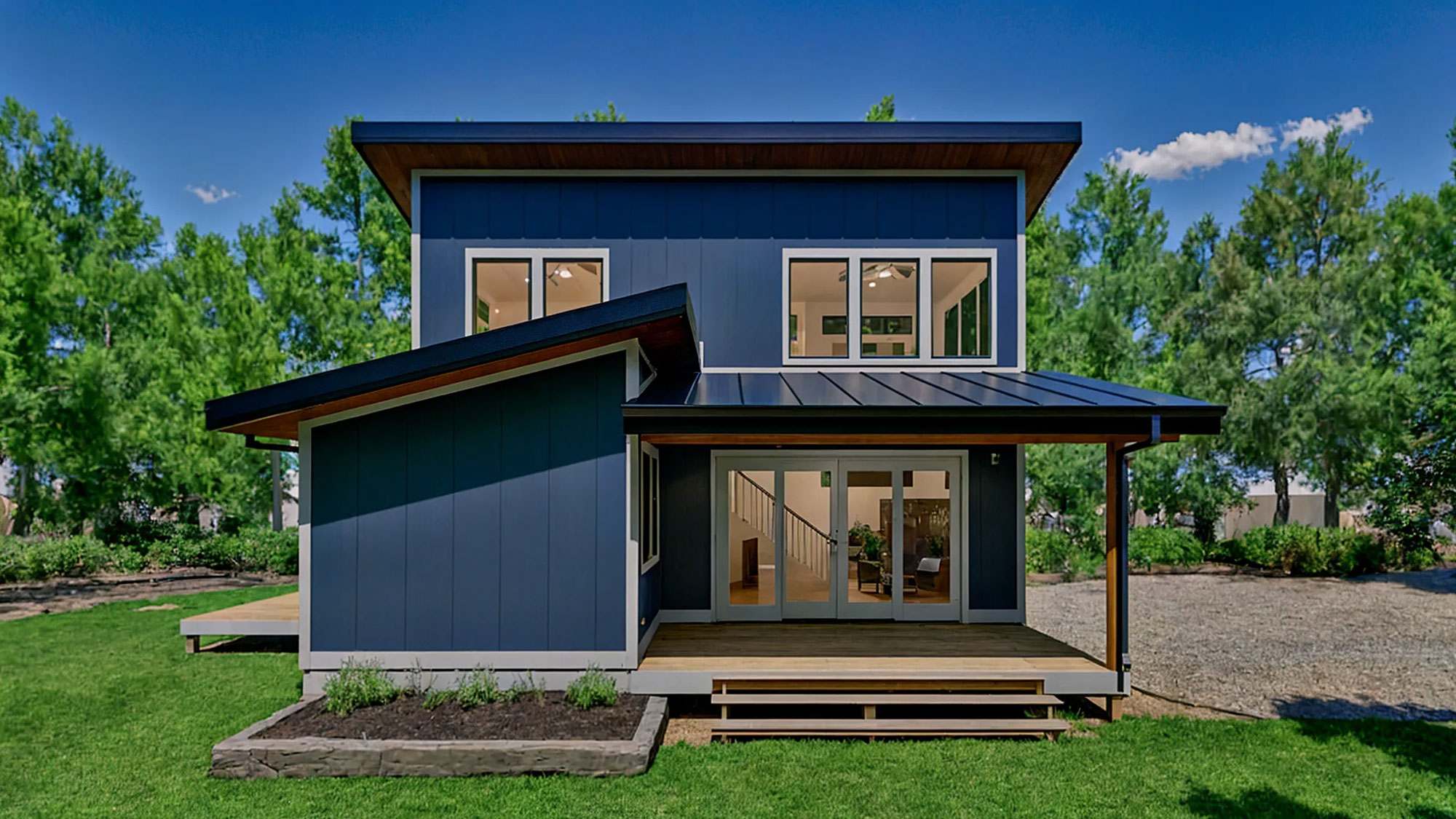

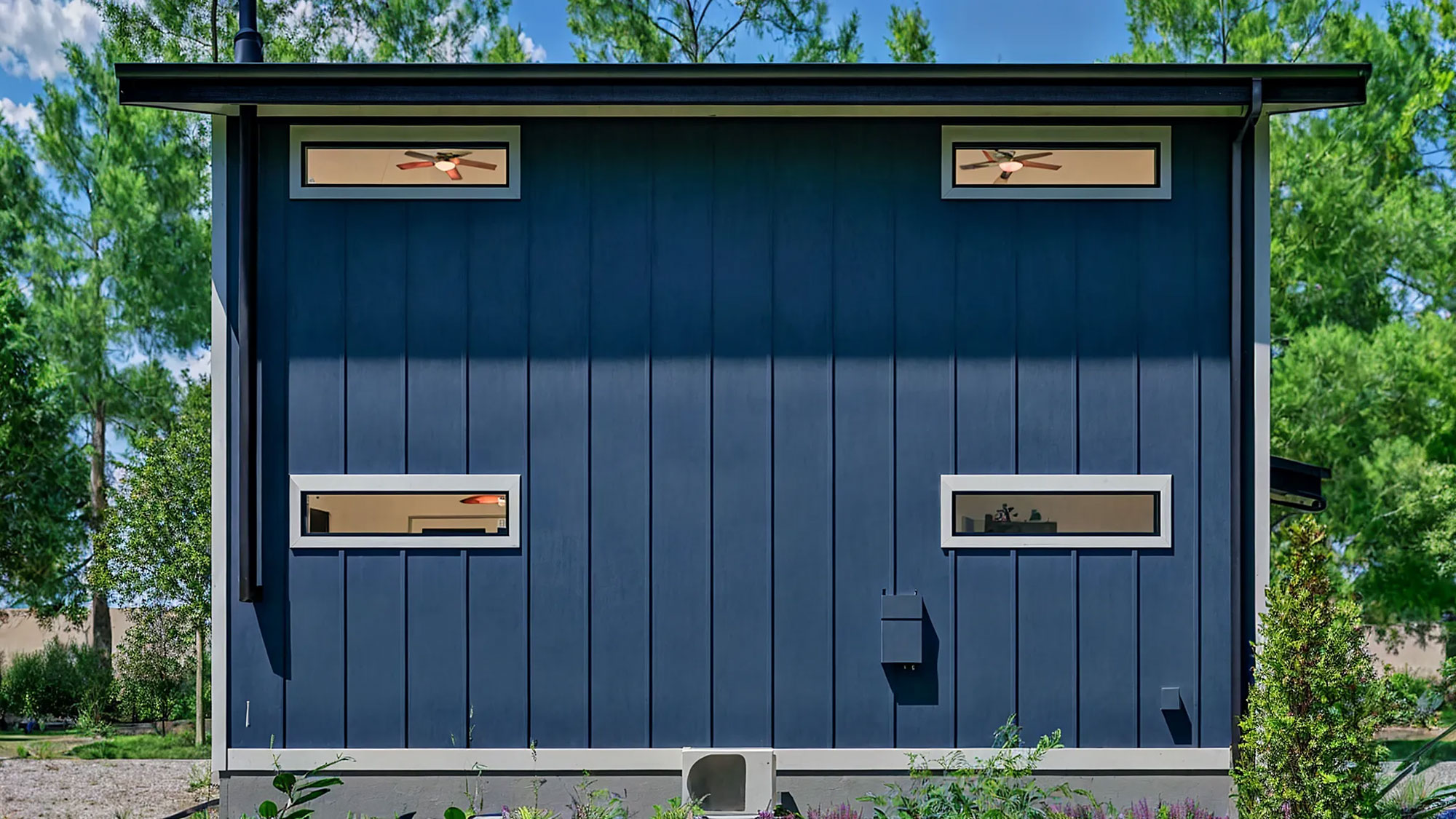

Throughout the ADU, large windows invite in natural light, creating a bright and airy ambiance. Design elements, such as efficient storage solutions and durable finishes, ensure that every inch of space is utilized effectively.

Whether you’re seeking a peaceful retreat or a functional space to balance work and leisure, this 2-story ADU offers a blend of comfort, convenience and style, all within a modest footprint.



Basic Details

1st Floor (sf): 510
2nd Floor (sf): 390
Garage (sf): 0
Porch (sf): 0
Total Area (sf): 900
Primary Style: Hill Country
Secondary Style: Traditional

Structure Details

Foundation Type: Slab-on-grade
Wall Type: 2×6 Exterior, CMU
Primary Roof Type: Metal
Primary Roof Pitch: 3: 12
Exterior Wall Materials: Horizontal Lap, Stucco

Interior Details

Ceiling Height: [Main Level] 9′-0″
Ceiling Height: [2nd Level] 9′-0″
Kitchen Features: Range
Secondary Rooms: Office

Garage Details

Garage Bays: 0

What's Included

1. Cover Sheet

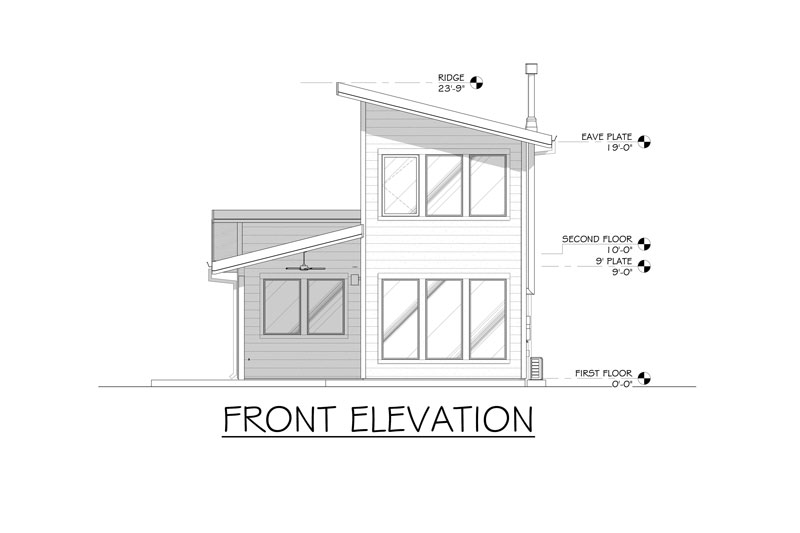

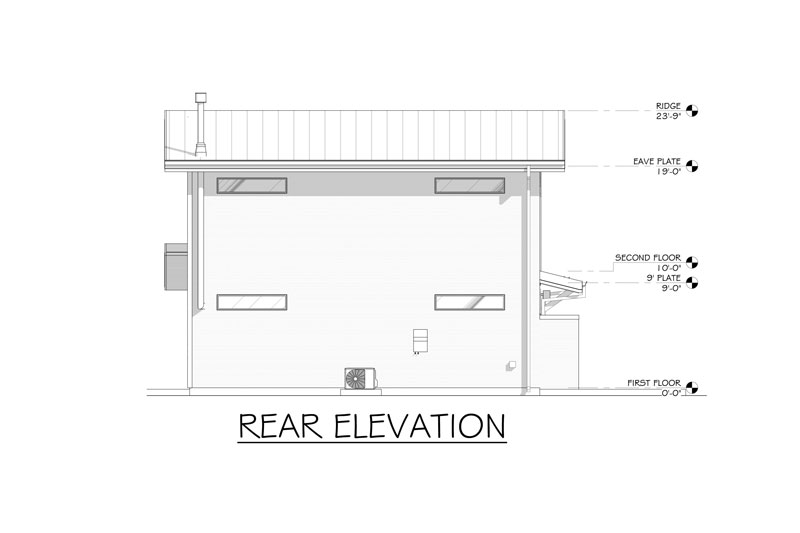

2. Elevations

3. Floor Plan

4. Sections & Interior Elevations

5. Lighting Plan

6. Ceiling Details

7. Schedules

$1,295.00

Contact Us to Modify This Plan
