The Newberry | One-Story Craftsman Ranch House Plan

About This Project

  • Custom Home
  • One Story
  • 55'-0" x 55'-6"
  • 1,795 sf Living
  • Height: 16'-8"
  • 3 Bedroom
  • 2.5 Bathrooms
  • 2-bay garage
  • LUtility Room

Plan Examples

Description

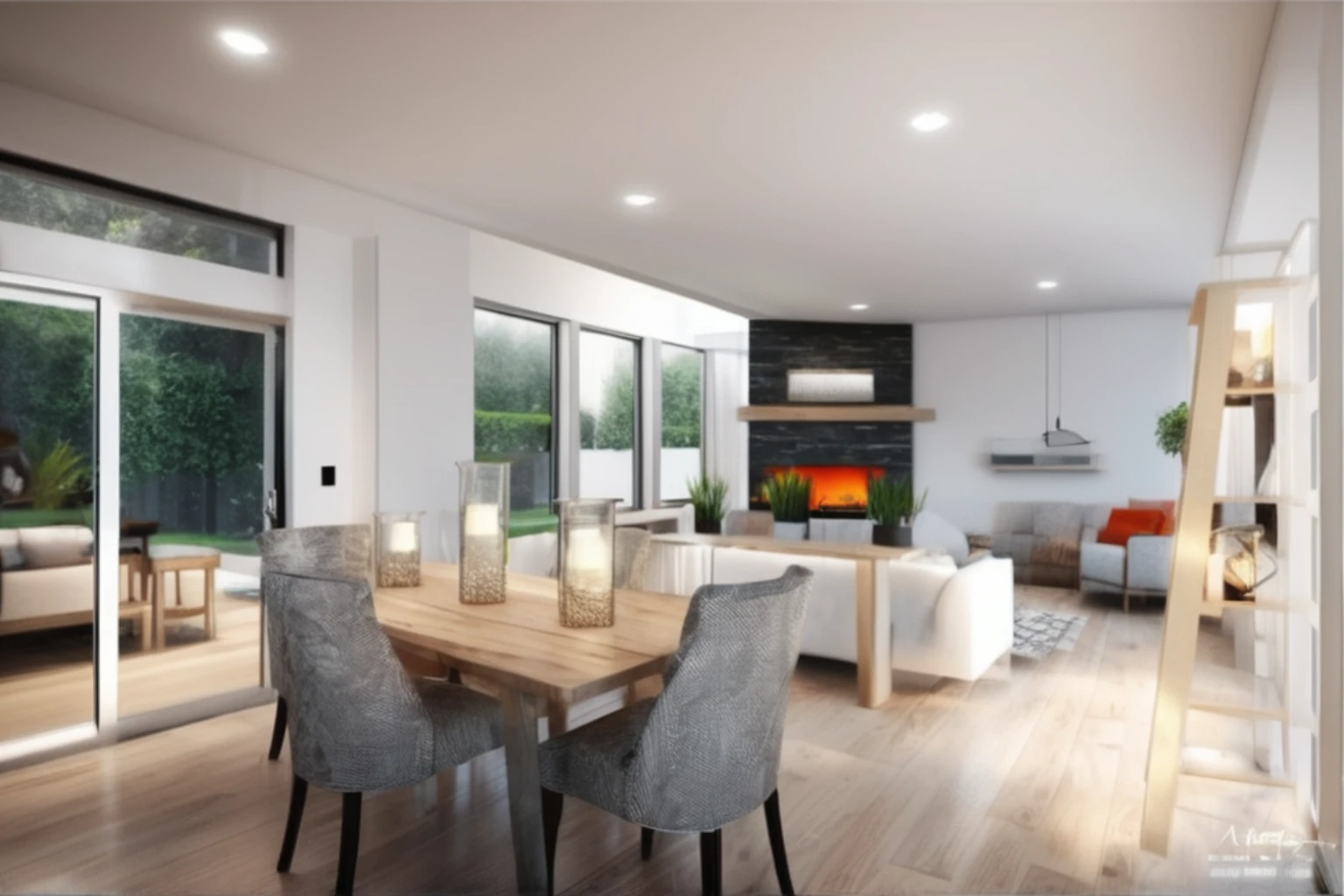

This architectural plan outlines a one-story, 1,795-square-foot Craftsman-style house. It features three bedrooms in a split layout, including a master suite on the main floor. The kitchen is equipped with a central island and a walk-in pantry, and it opens into a den and a flexible room suitable for various uses. Additional practical spaces include a utility room and laundry. The house is framed with 2×6 exterior walls standing 9 feet tall and boasts a stem wall foundation.

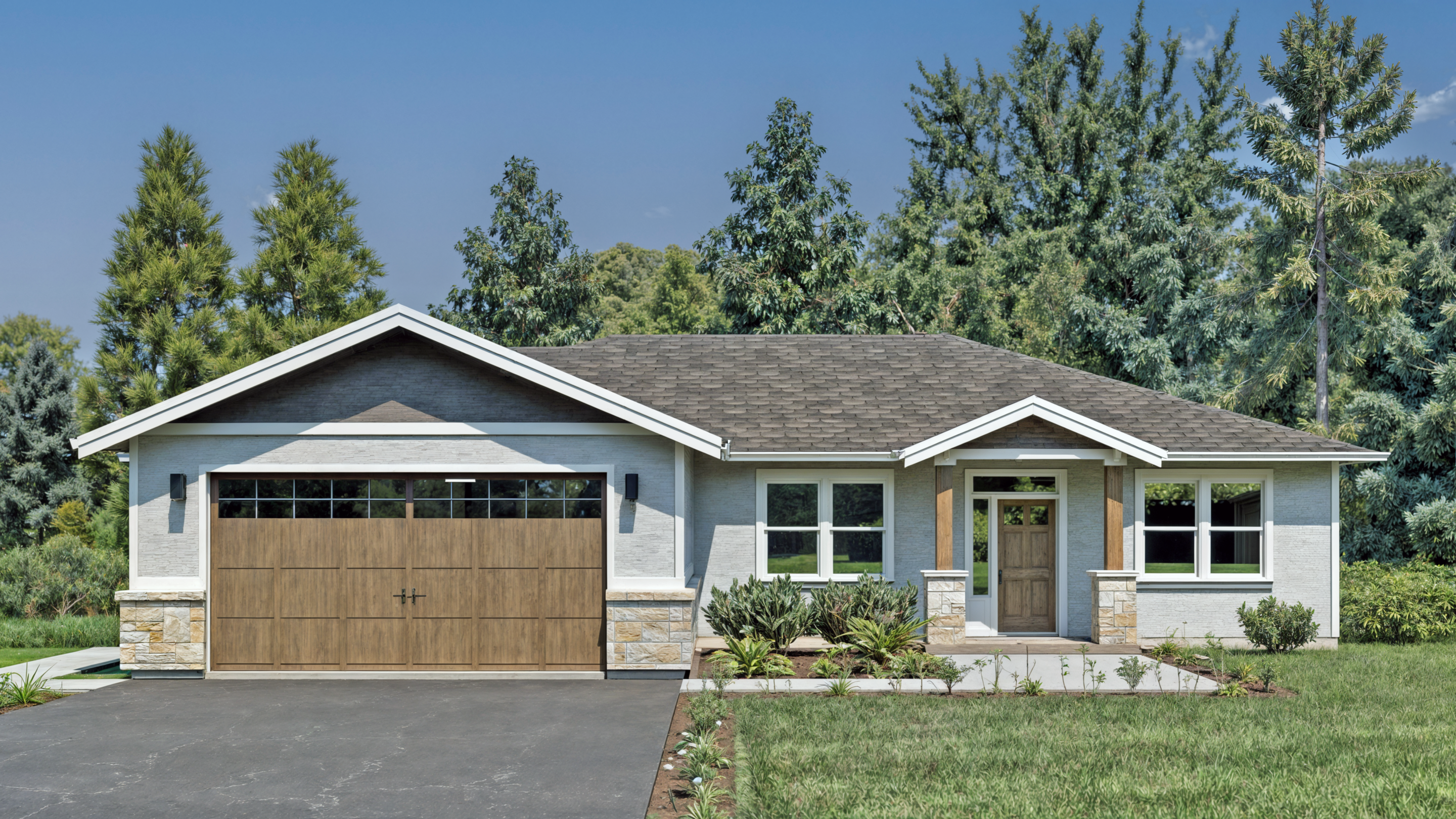

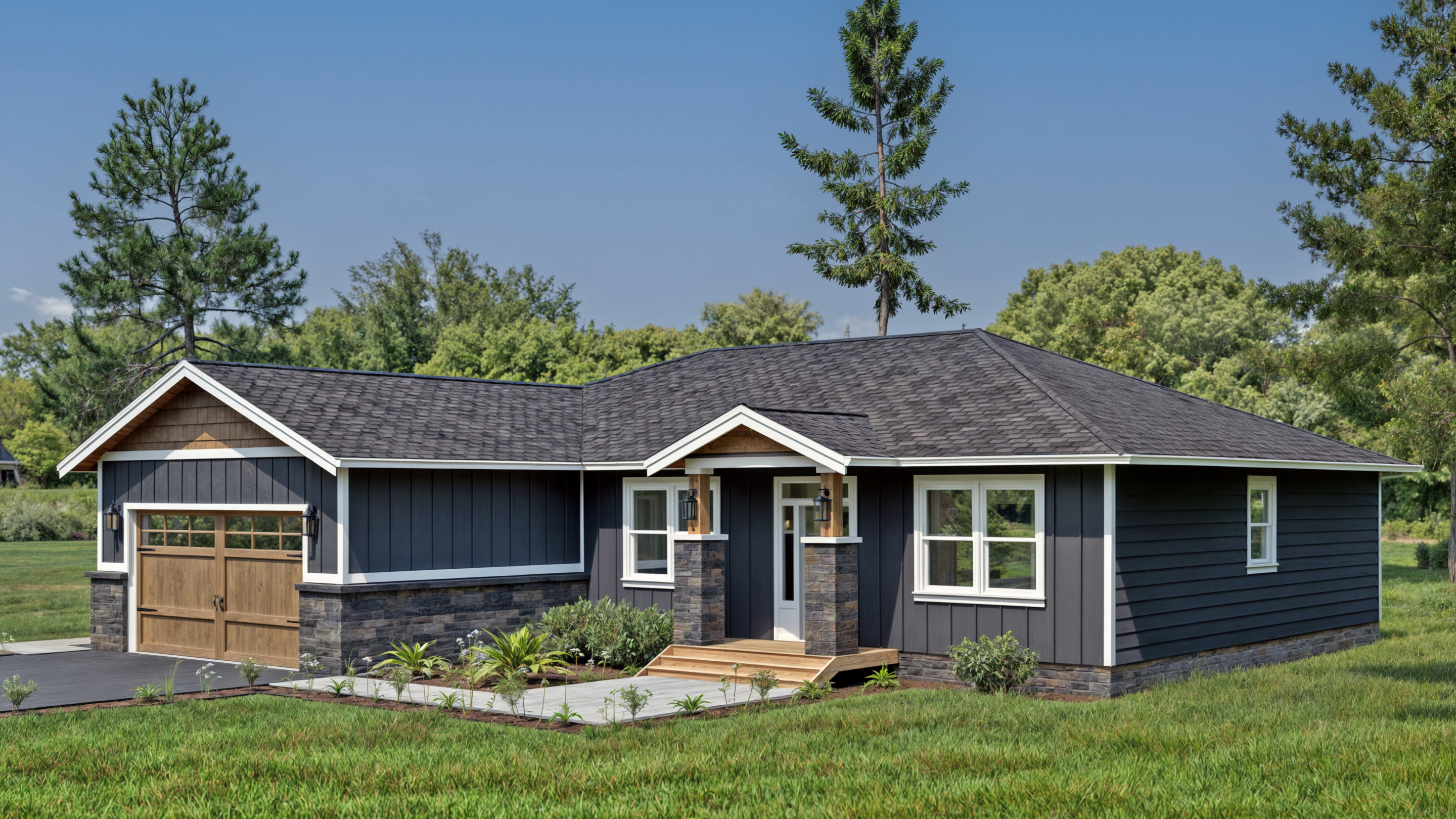

The exterior showcases a combination of horizontal lap siding and wood shingles under a composite shingle roof. The design includes an attached two-car garage at the front. Comprehensive architectural documents are provided, covering everything from floor and roof framing to interior details and electrical plans, alongside CAD files for precise construction.

Basic Details

Garage (sf): 493
Front Porch (sf): 50
Back Porch (sf): 216
Total Area (sf): 1795
Primary Style: Craftsman

Structure Details

Foundation Type: Stem Wall
Wall Type: 2×6 Exterior
Primary Roof Type: Composite Shingle
Primary Roof Pitch: 5/12
Exterior Wall Materials: Horizontal Lap, Wood Shingle

Interior Details

Ceiling Height: [Main Level] 9′-0″
Kitchen Features: Kitchen Island, Walk-in Pantry
Secondary Rooms: Utility, Den

Garage Details

Garage Bays: 2
Garage Orientation: Front
Garage Type: Attached

What's Included

1. Cover Sheet

2. Elevations

3. Floor Plan

4. Sections & Interior Elevations

5. Lighting Plan

6. Ceiling Details

7. Schedules

Contact Us to Modify This Plan
