The Colorado | 1-Bed ADU Garage Plan
- Addition/ADU
- Two Story
- 24' x 36'
- 800 sf Living
- Height: 24'-6"
- 1-2 Bedrooms
- 1.5 Bath
- 2 Car Garage
Plan Examples
Description

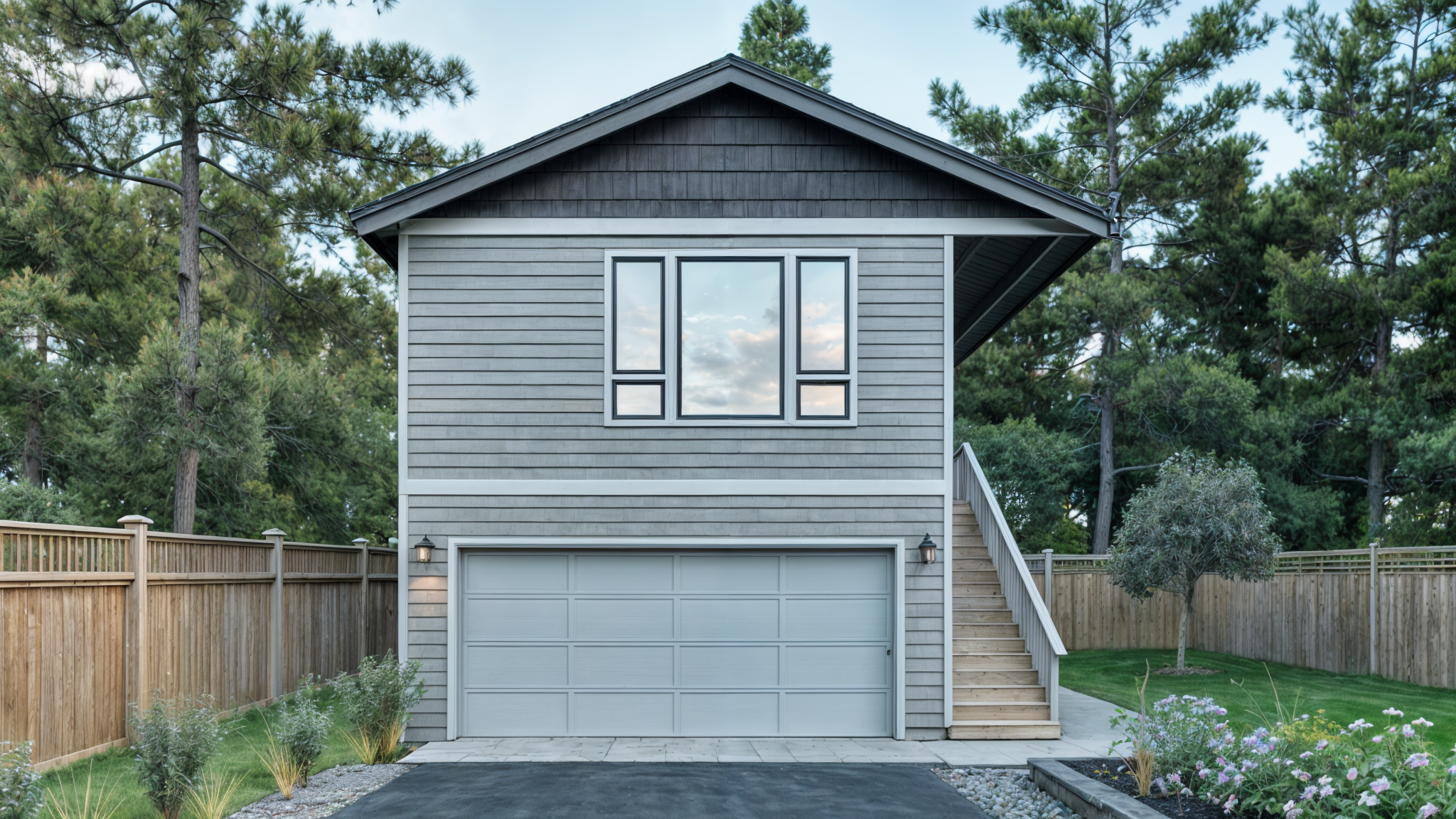

This two-story accessory dwelling unit (ADU) can be a valuable and flexible addition to any property. The ground floor has a spacious garage and a well-equipped workshop with separate entrances for convenience and privacy. The exterior of the ADU has a timeless design that can blend well with various architectural styles.

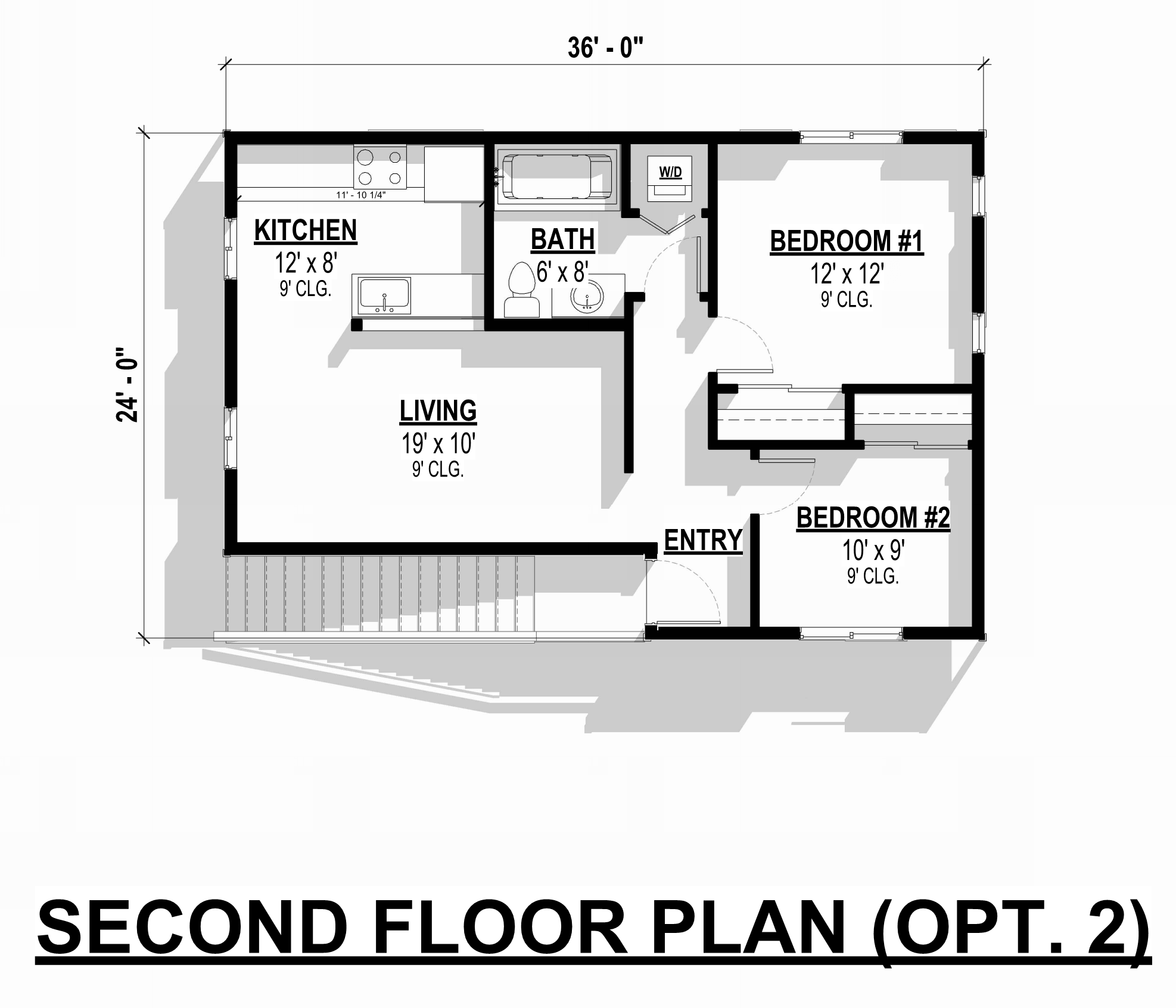

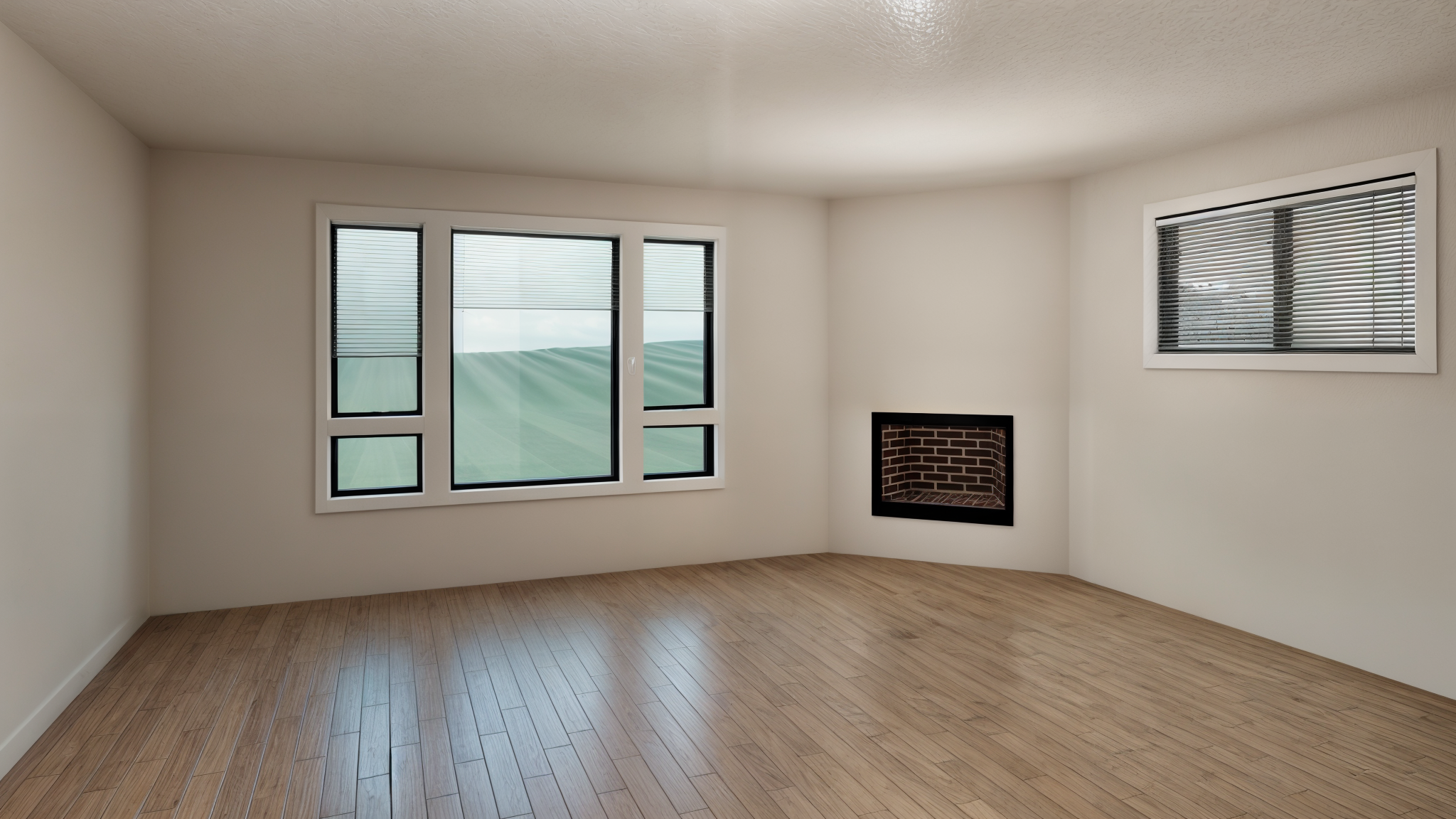

Head up the protected staircase to find a thoughtfully designed living space to reach the second floor. The open floor plan offers two layout options, depending on whether you prefer one or two bedrooms. The living room, dining area, and kitchen are arranged in such a way as to maximize functionality and create a comfortable, welcoming atmosphere. With its practical yet stylish design, this ADU can enhance the property’s utility and suit various living arrangements, making it an excellent choice for anyone looking for a flexible and practical home design solution.
Basic Details
1st Floor (sf): 800
Garage (sf): 800
Porch (sf): 20
Total Area (sf): 800
Primary Style: Craftsman
Structure Details
Foundation Type: Monolithic Slab
Wall Type: 2×6 Exterior
Primary Roof Type: Composite Shingles
Primary Roof Pitch: 4/12
Exterior Wall Materials: Horizontal Lap
Interior Details
Ceiling Height: [Main Level] 8′-0″
Ceiling Height: [Upper Level] 9′-0″
Kitchen Features: Range
Secondary Rooms: Workshop
Garage Details
Garage Bays: 2
Garage Orientation: Front
Garage Type: Attached
What's Included
1. Cover Sheet

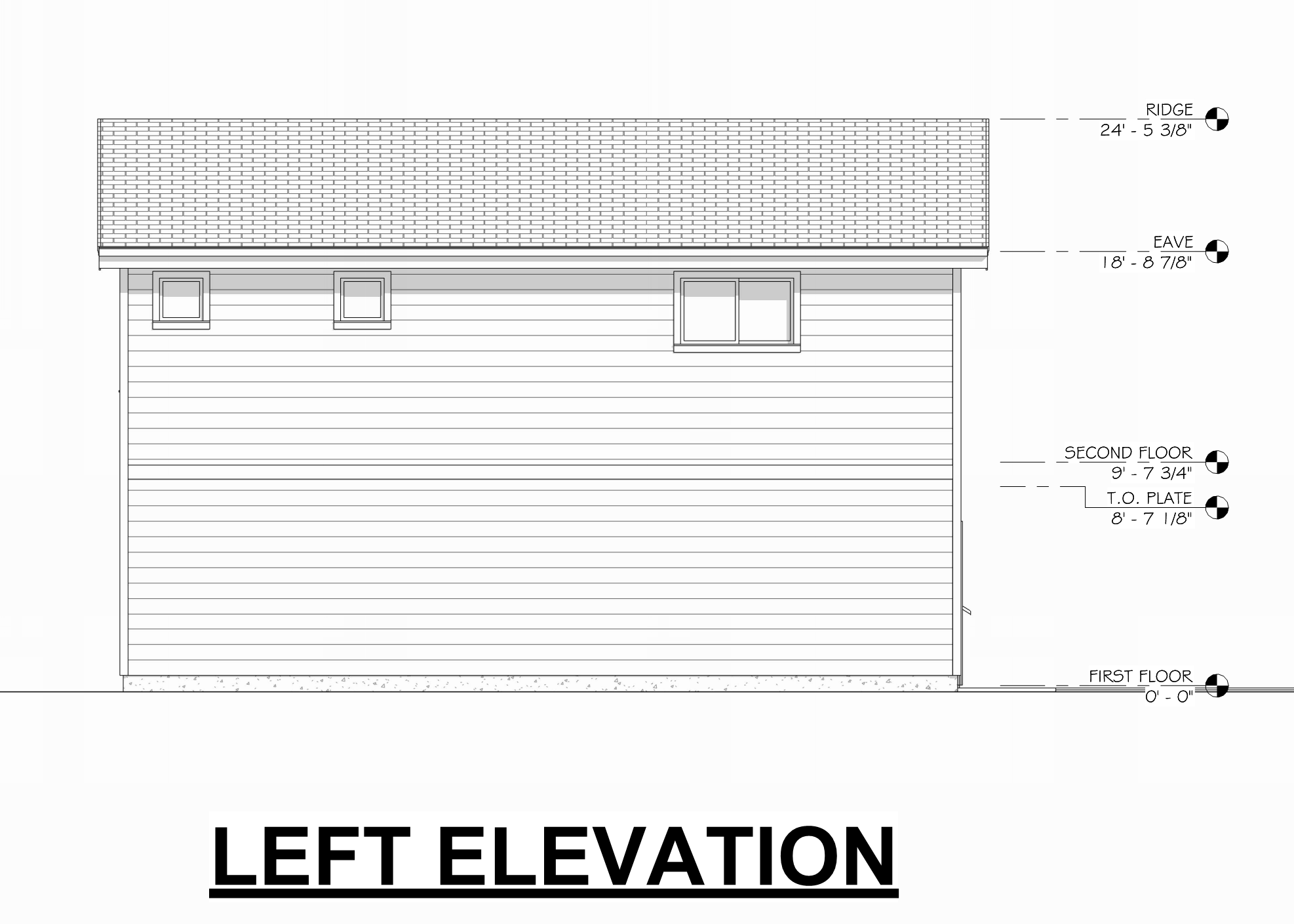

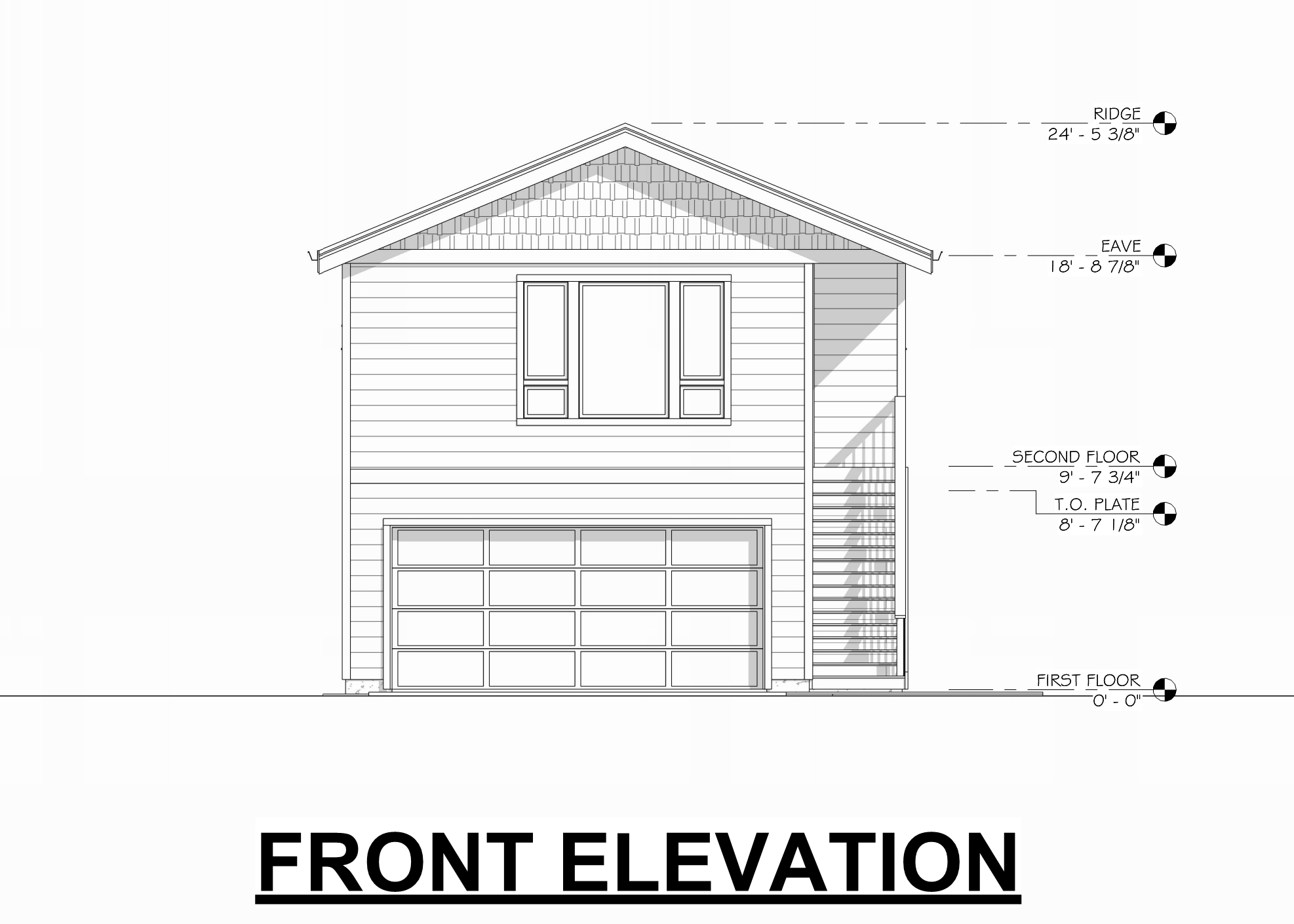

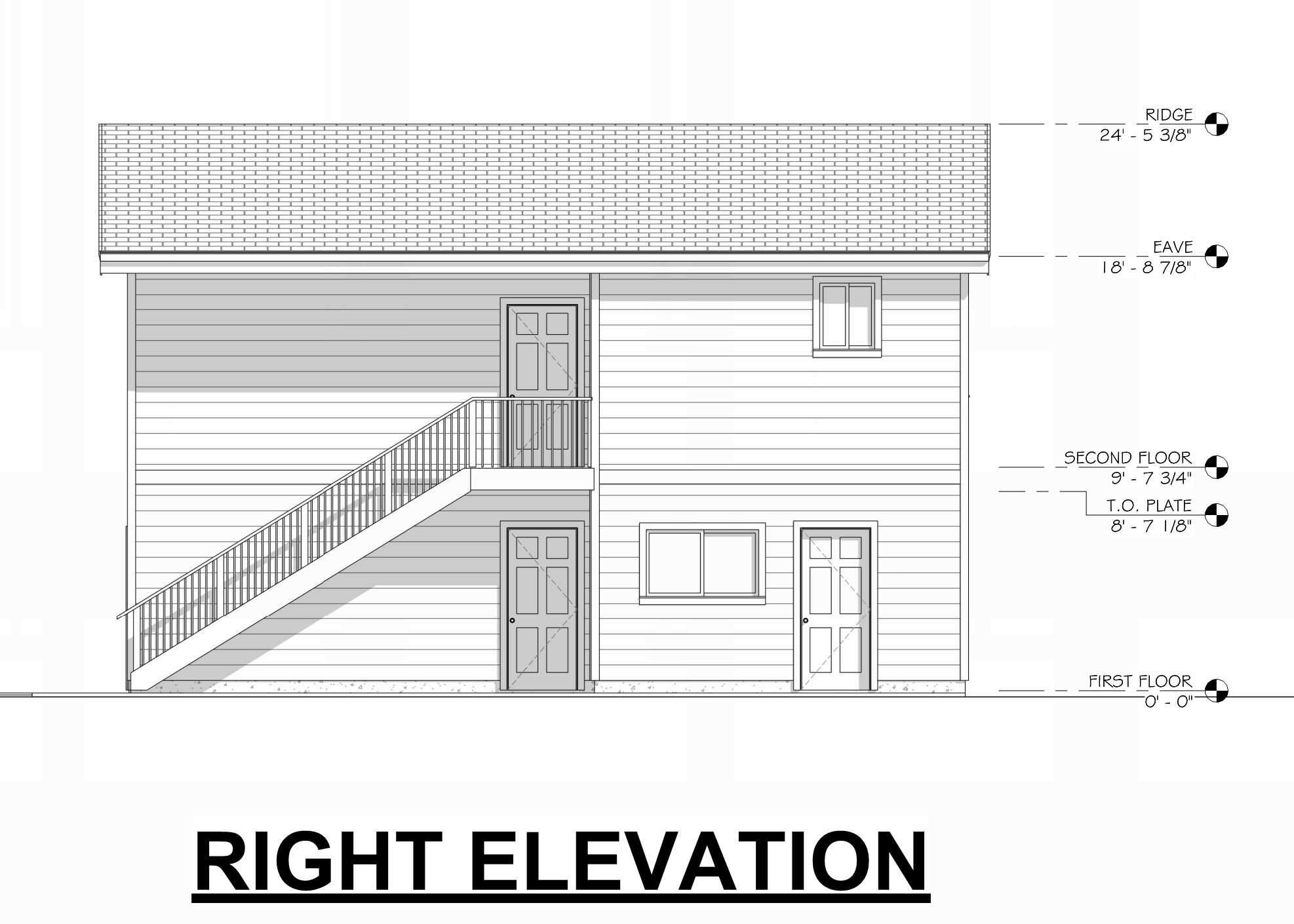

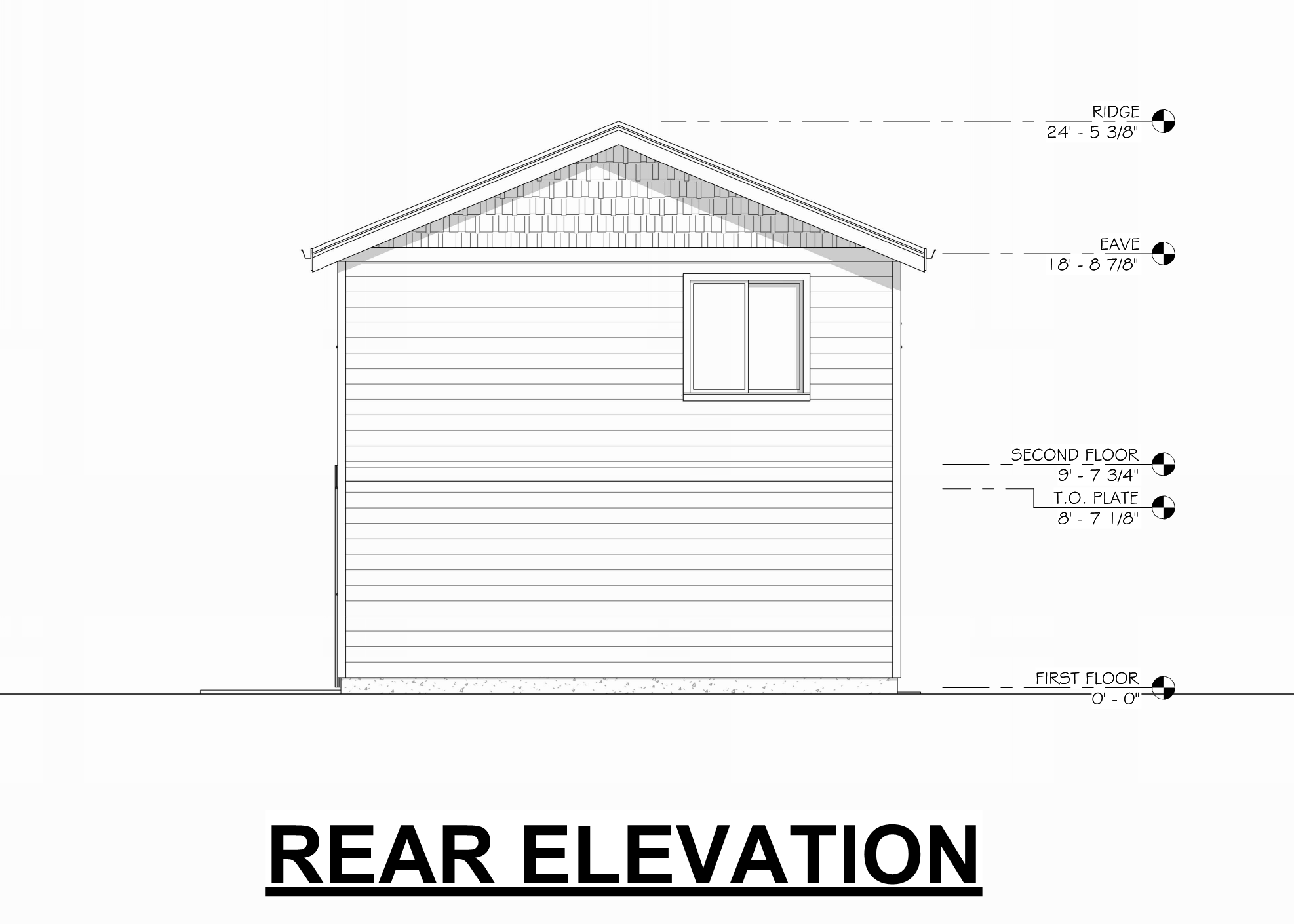

2. Elevations
3. Floor Plan
4. Sections & Interior Elevations
5. Lighting Plan
6. Ceiling Details
7. Schedules
